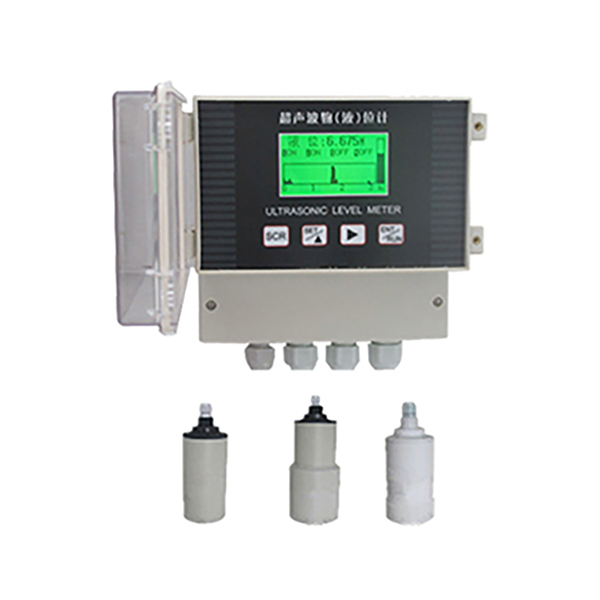

Ultrasonic Level Meter
Model No： LUSS-99
APPLICATIONS： Water and sewage treatment, electricity, mining, food industry etc
PRINCIPLE： Transmit-reflect-receive measurement principle
Advantages
- Non-contact measurement
- Strong anti-interference
- Stable performance
- High reliability
Product Description
LUSS-99 series ultrasonic liquid level meter is an intelligent non-contact liquid level measuring instrument. The instrument uses imported industrial-grade single-chip microcomputers. It has perfect datatransmission and man-machine communication functions, digital temperature compensation, strong anti-interference, and arbitrary settings. Alarm function and a variety of output signal types, easy to interface with related facilities. It can meet the liquid level measurement requirements of various working conditions without touching the industrial medium.
Product Features
- Adopting high speed digital signal processing technology, intelligent recognition and analysis ,suitable for bad environment
- Advanced signal environment display (oscilloscope technology), easy for debugging and installation
- High-speed and reliable microcomputer processing, fast and stable
- Non-contact measurement, multiple data filtering technology, stable and reliable measurement
- High accuracy D/A output, improve the precision of 4-20 ma output
- Equip with 485 interface,can contact with computer and other data collector
Technical Parameter
LUSS-992 / 997 One Piece Type Ultrasonic Level Meter
| Technical Parameter | |
| Meter range | 0 to 3m, 0 to 5m, 0 to 8m, 0 to 10m, 0 to 15m |
| Measurement dead zone | Low range <0.3m high range <0.5m |
| Emission angle | 12 ° |
| Resolution | 1mm |
| Instrument accuracy | ± 0.3% x range |
| Temp compensation | Automatic temperature compensation |
| Working frequency | 20 KHz ~ 43.0KHz |
| On-site setting | Completed by the level / level meter button |
| Analog output | 4 ~ 20mA load> 3000 |
| Digital output (optional) | RS485 (Modbus) |
| Switch output (optional) | Relay output |
| Working power | 12 ~ 24V.DC (2-wire / 4-wire system)；220V.AC(4-wire system) |
| Shell material | ABS engineering plastic shell or cast aluminum shell |
| Probe material | PP or PTFE |
| Installation | Thread or thread ring fixing, flange |
LUSS-993 / 994 split ultrasonic level meter
| Technical Parameter | |
| Meter range | 0~3 m ~5 m to~10 m to~15 m to~20 m (optional when ordering) |
| Dead zone | <0.3m |
| Emission angle | 12 ° |
| Accuracy | ± 0.3% x range |
| Minimum display resolution | 1mm |
| Temperature compensation | automatic temperature compensation |
| Working frequency | 20 KHz ~ 200KHZ (different due to model specifications) |
| On-site setting | Completed by local keys |
| Calibration | Factory calibration, can be calibrated on site |
| Display | 3 ”LCD |
| Output signal | 4 ~ 20mA; relay; RS485 (optional) |
| Working voltage | AC220V or DC24V |
| Power consumption | <3W |
| Host dimensions | 213 x 185 x 112mm |
| Shell material | ABS engineering plastic; Probe: PP, PTFE |
| Probe connection method | Screw connection or screw ring fixing, flange |
| Keyboard | Five-digit patch keys |
| Sensor cable | Shielded cable 10m (any length can be customized) |
