Radar Level Meter

Model No: DRUL-99G

APPLICATIONS: Electric power, steel, metallurgy, cement, petrochemical, papermaking, food etc

PRINCIPLE: 76-81GHz FM continuous wave (FMCW) radar

Products Categories

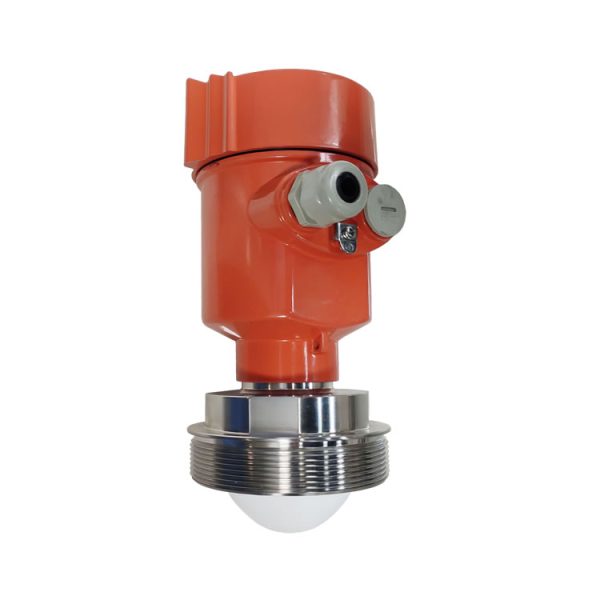

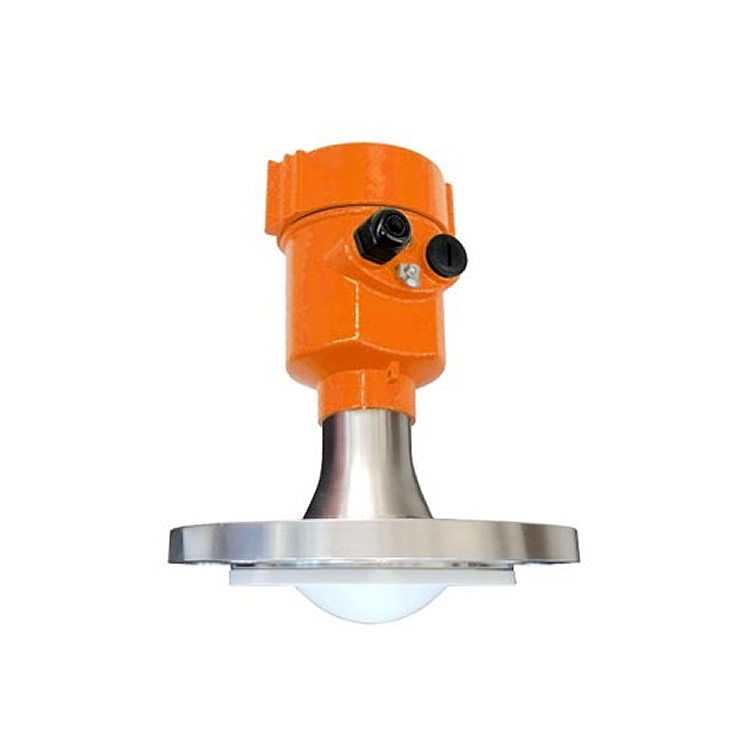

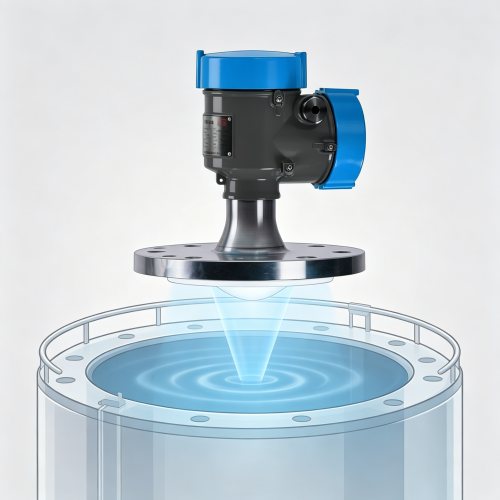

The DRUL-99G level meter is a frequency modulated continuous wave (FMCW) radar product operating at 76-81 GHZ. Because of its higher operating frequency and shorter wavelength, it is especially suitable for solid applications. The working mode of transmitting and receiving electromagnetic waves through the lens has unique advantages in the environment of high dust and harsh temperature. This series has several models, the maximum range of products can reach 120m. The minimum blind area should be 8cm. The instrument provides flange or thread fixing method, making the installation convenient and simple.

Product features:

  • CMOS millimeter wave RF chip, more compact RF architecture, higher signal-to-noise ratio, smaller blind area.
  • 5GHz working bandwidth, with higher measurement resolution and accuracy.
  • 3° or 8° antenna beam Angle, installation environment interference on the instrument less impact, more convenient installation.
  • Shorter wavelength, better reflection characteristics on solid surfaces.
  • Support remote debugging and remote upgrade, reduce waiting time, improve work efficiency.
  • Support mobile phone Bluetooth debugging, convenient field personnel maintenance work.

Performance parameters:

  • The transmission frequency is 76GHz ~ 81GHz
  • Measuring range 0.3m~ 60m
  • 08m to 30m
  • 6m to 120m
  • Measuring accuracy ±1mm
  • Beam Angle 3°/8°
  • Dielectric constant measurable medium ≥2
  • Power supply range 15-28.0 VDC (4-wire, 2-wire)
  • Signal output two-wire system 4 ~ 20mA
  • Four-wire RS-485 or 4~20mA
  • The fault output is 3.8mA, 4mA, 20mA, 21mA, Hold
  • Set operation 128×64 lattice LCD screen
  • 4 Press the button to configure the upper computer software
  • Medium temperature -40 ~ 200℃
  • Shell material cast aluminum shell/stainless steel
  • Antenna type tetrafluoroidal lens antenna
  • Process pressure -0.1~2MPa
  • Electrical interface M20 x 1.5
  • Cable specification AWG18 or 0. 75mm², cable diameter 5-9mm
  • Explosion-proof grade ExiallCT6Ga/ExdIICT6Gb
  • Protection level IP65
  • Mounting method thread or flange
