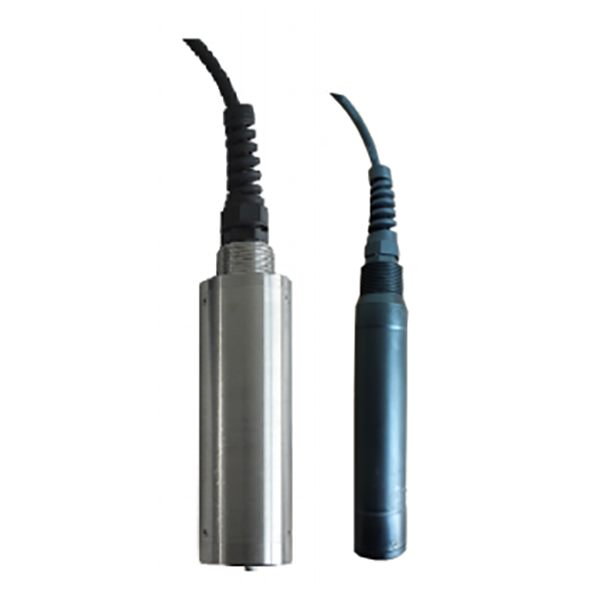

Optical Dissolved Oxygen Sensor

MODEL NO： FDO-99

APPLICATIONS：

Industrial and municipal sewage treatment plants: Regulating tank, aeration tank, aerobic/anaerobic digestion tank and effluent monitoring.
Water environment monitoring: Rivers, lakes, sea water, fishing grounds, etc.

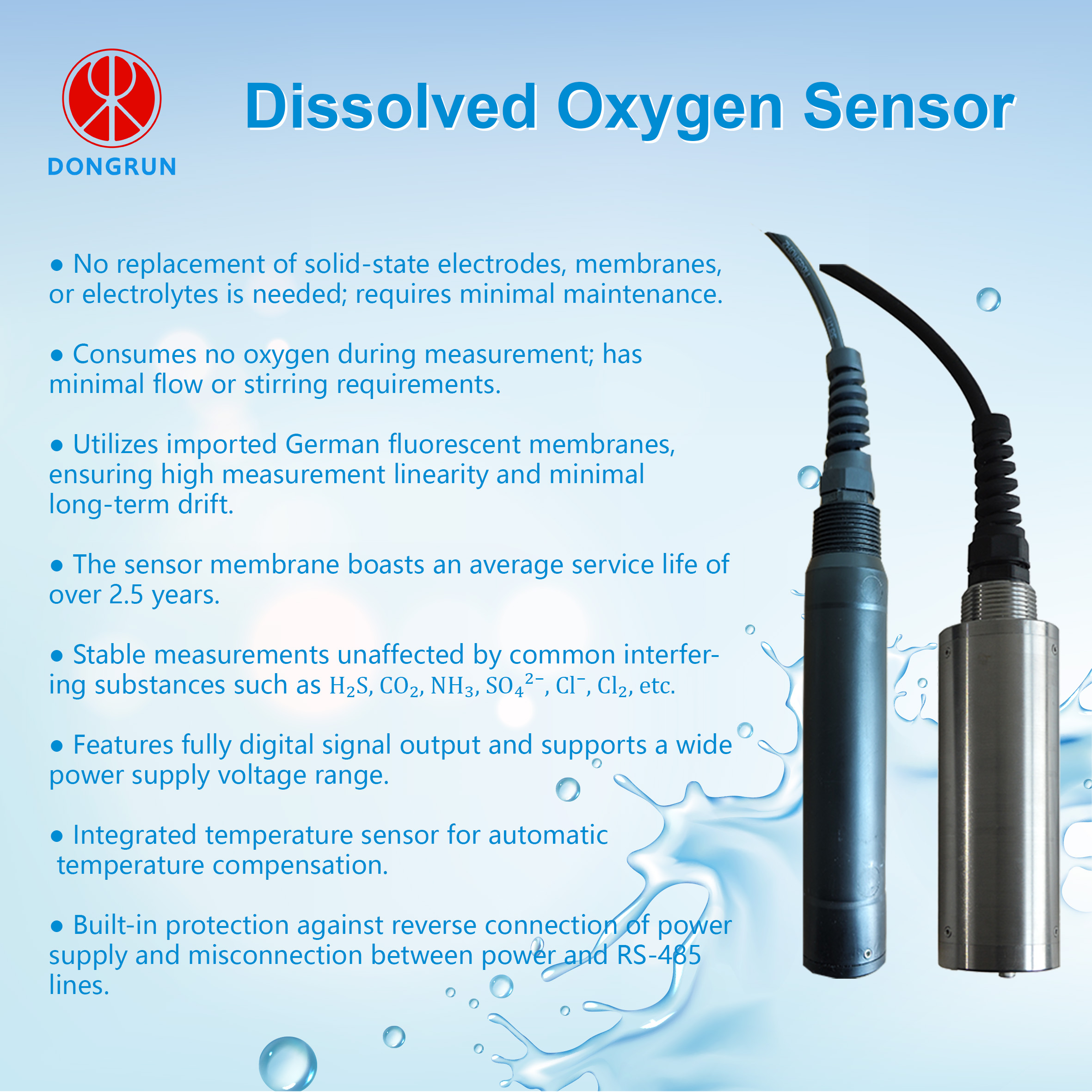

Advantages

Fluorescent film has scratch resistance, not easy to damage, easy to clean and maintain the film.
Hardware and software performance is improved. High measurement accuracy.
Light source, detector and other key components are imported to ensure the stability and reliability of product performance.
Small size, low power consumption, easy to integrate.
Anti-reverse connection protection for positive and negative terminals of the sensor power supply.
Prevent incorrect cable connections to the sensor RS485 A/B.

Product Description

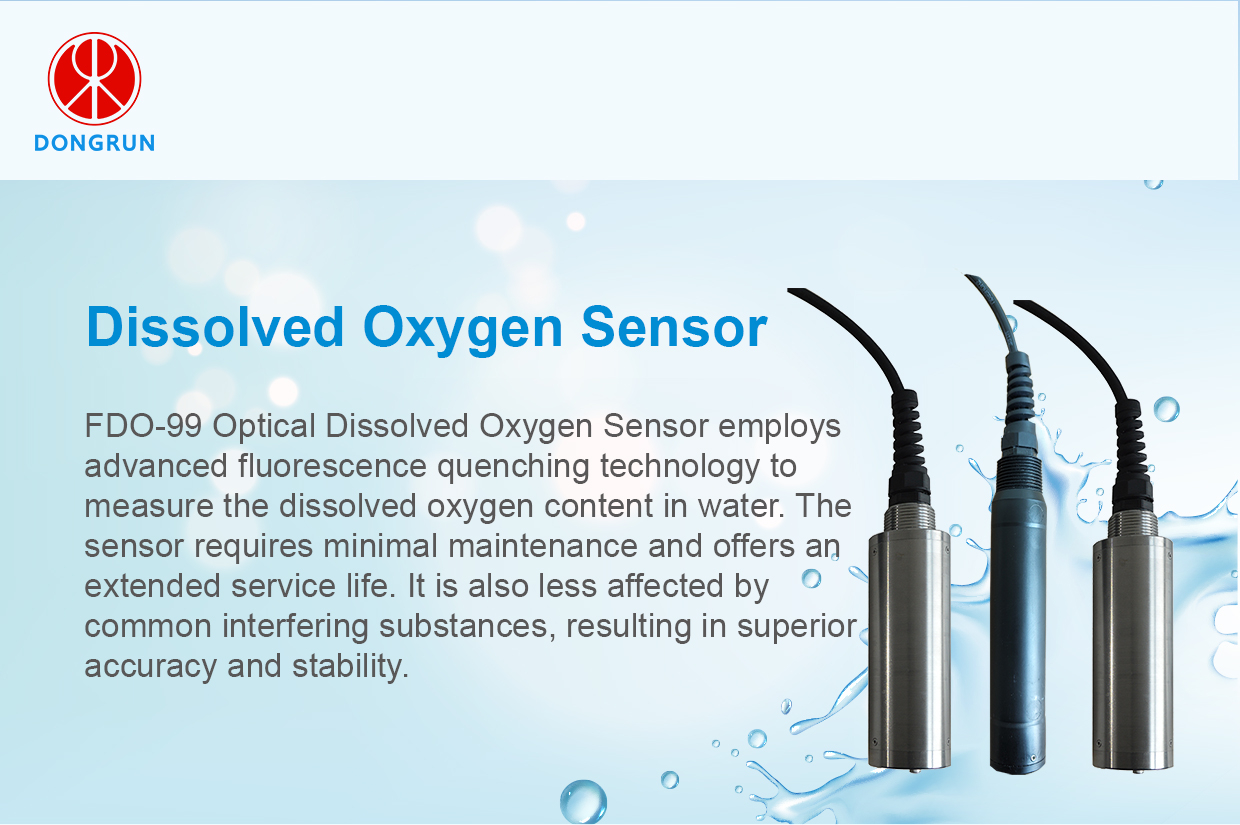

The FDO-99 series fluorescent method dissolved oxygen sensor is a product designed for water environment monitoring and sewage treatment. Adopting advanced fluorescence quenching principles and accurate phase detection techniques and innovative packaging processes, the reliability and service life of the product are greatly improved. Its long -term low drift and maintenance-free characteristics make the product better than the traditional membrane electrode.

Specification

Measuring range: dissolved oxygen 0 ~ 20mg/L, Saturation 0 ~ 120%
Resolution: 0.01mg/L
Operating temperature: -10 ~ 55℃
Protection level: IP68
Power supply: DC12 ~ 24V, 0.2W
Output: RS485 Modbus.
Cable length: Standard 10m (customizable)

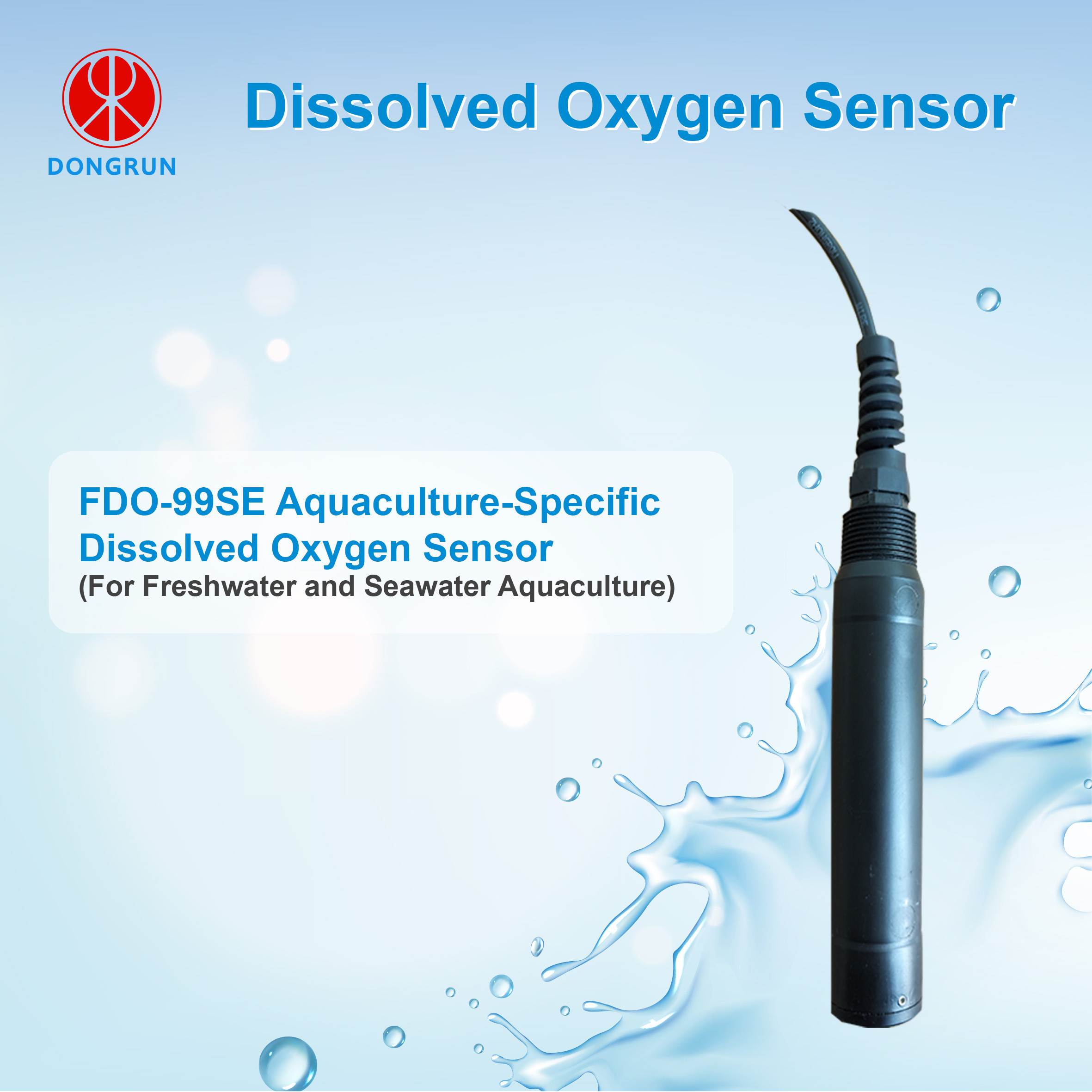

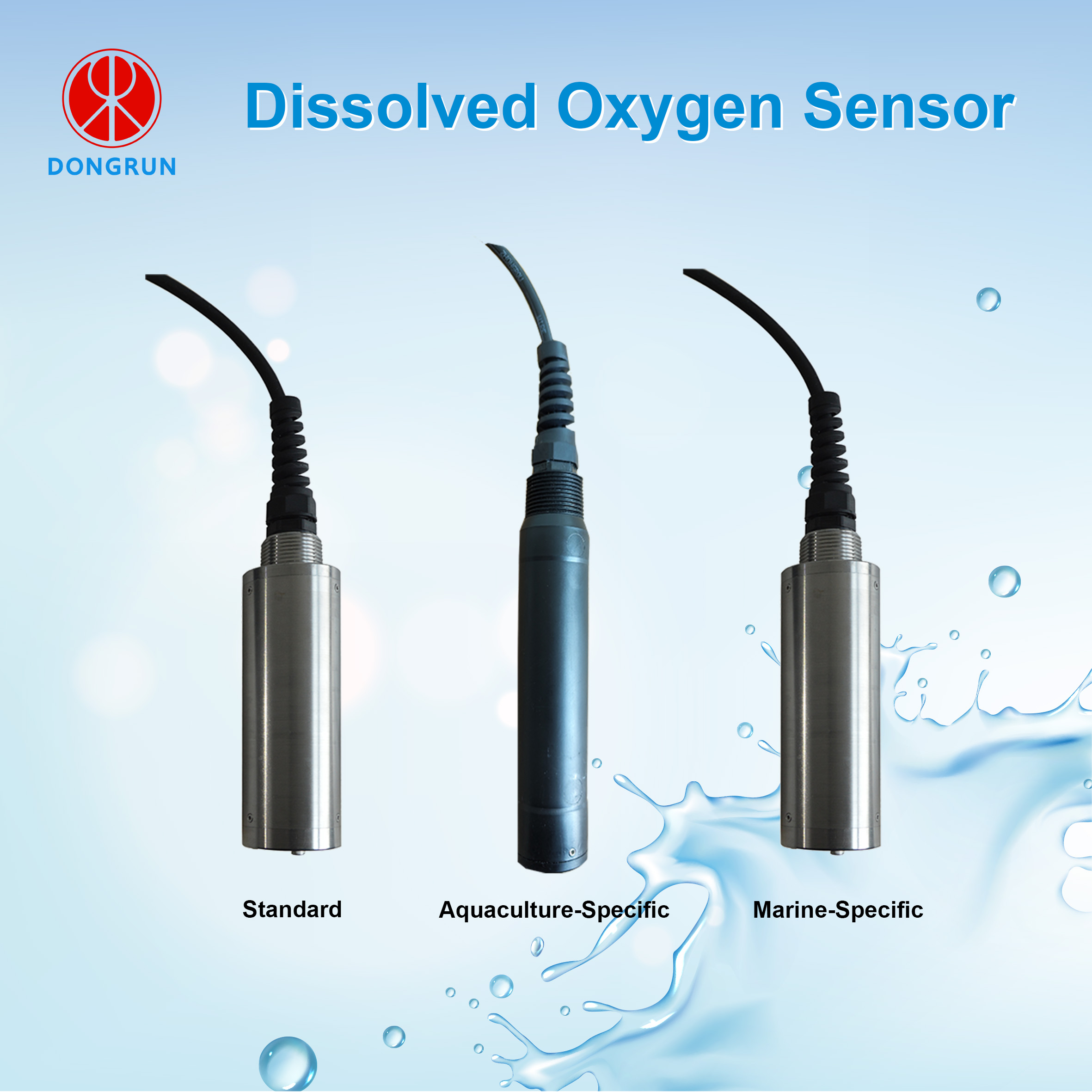

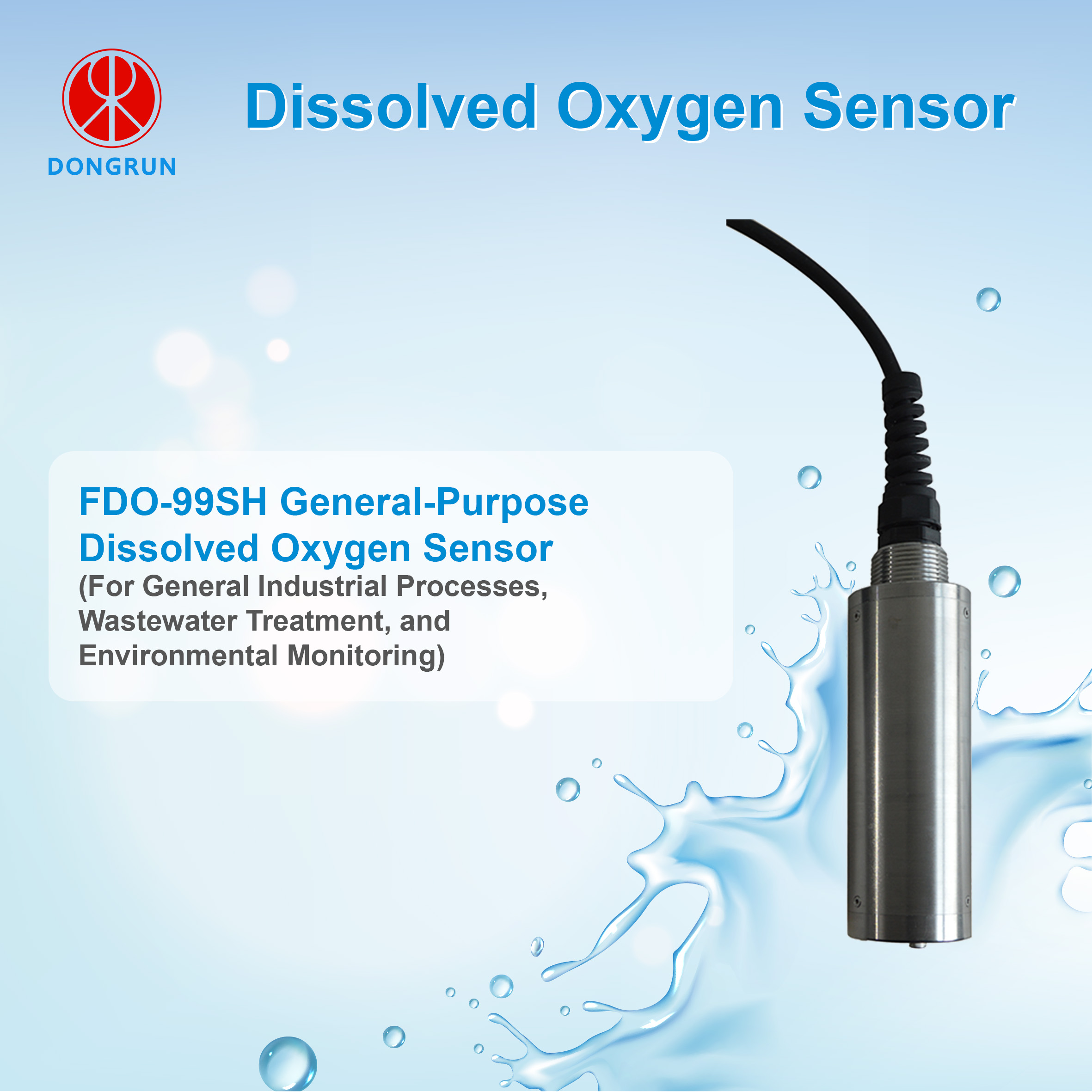

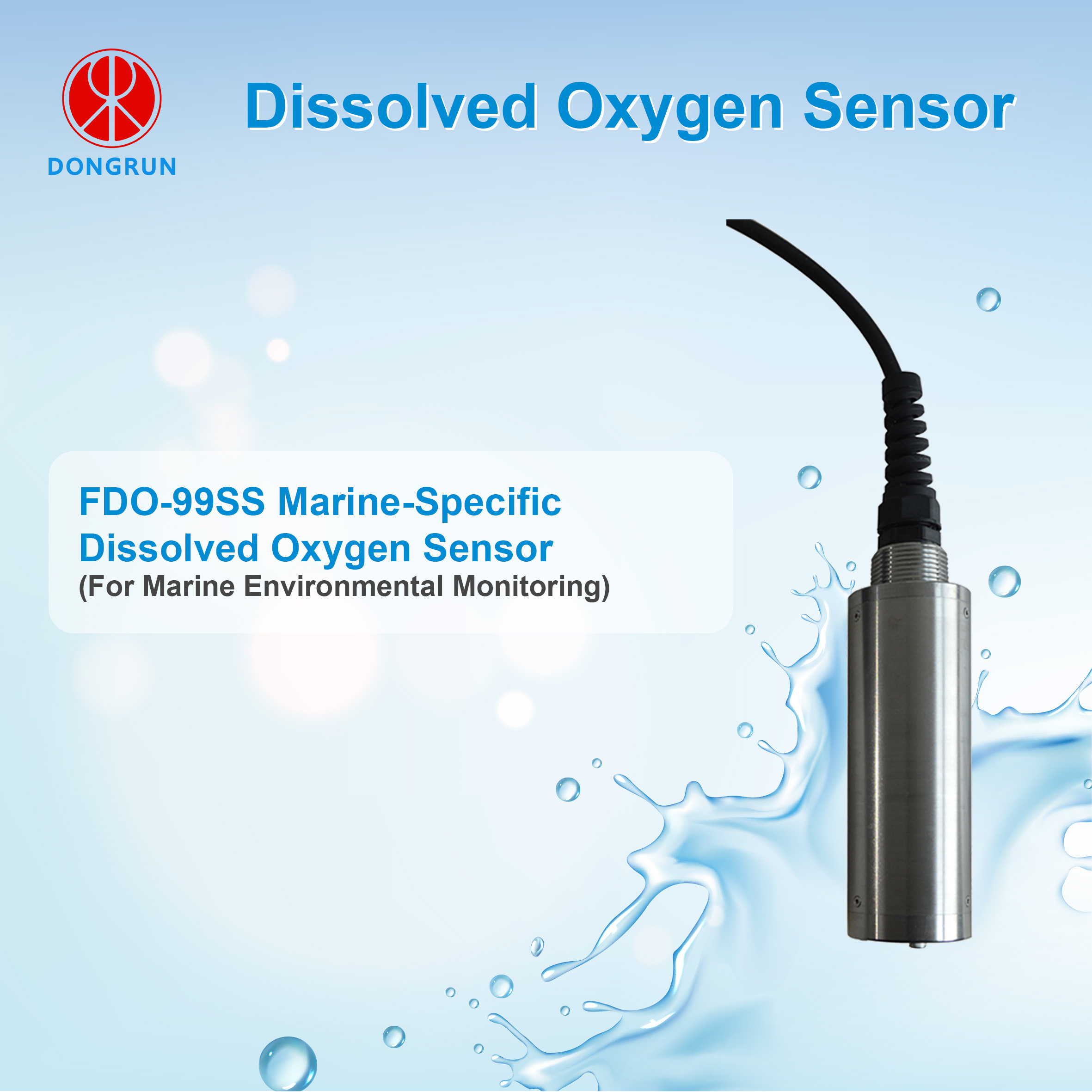

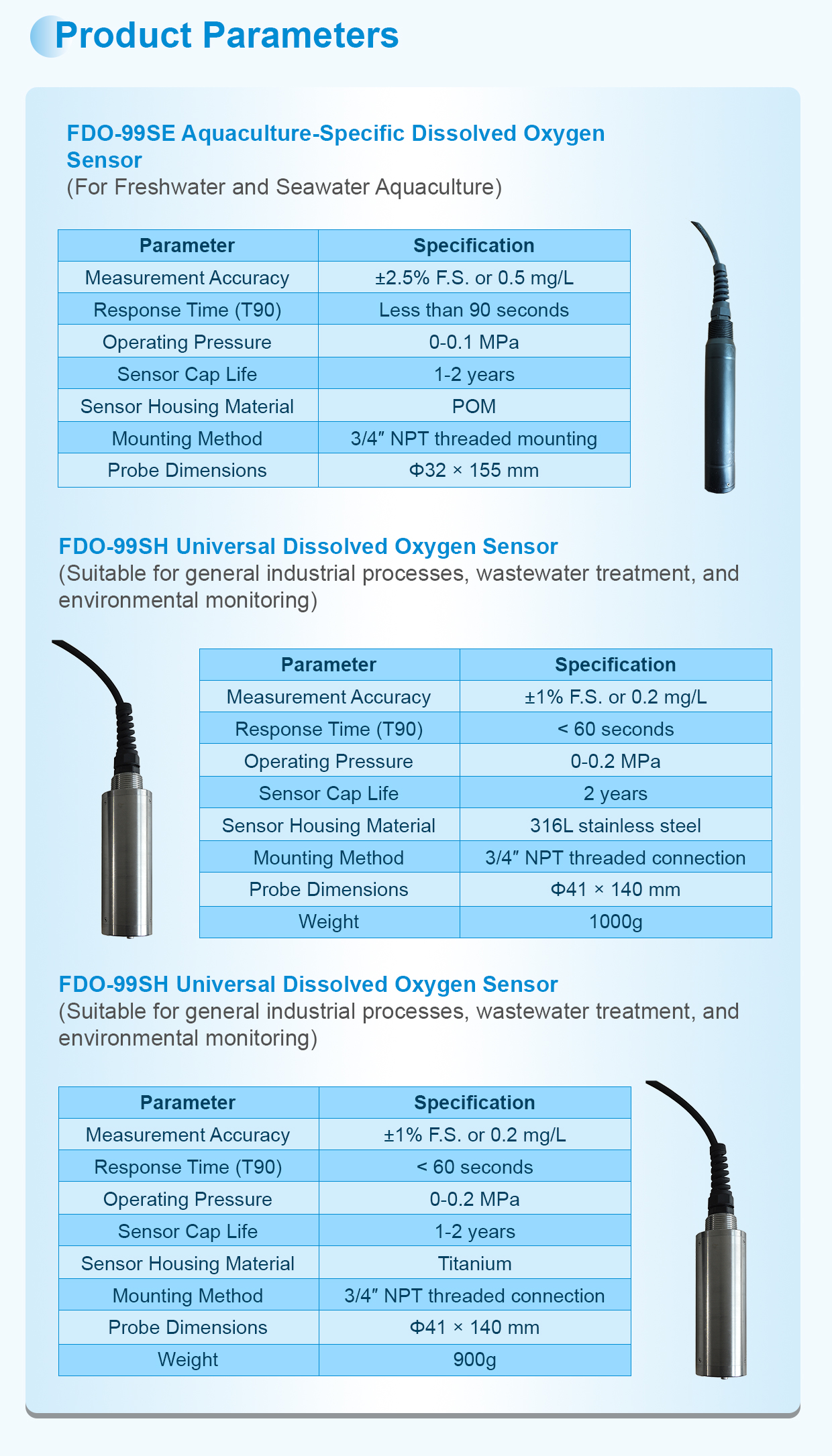

	FDO-99SH general type	FDO-99SS Marine special	FDO-99E Aquaculture
Application	General industrial process, sewage treatment, environmental monitoring.	Marine environment	Fresh or Brackish water aquaculture ponds.
Accuracy	DO: ±1%F.S Temp: ±0.5℃	DO: ±1%F.S Temp: ±0.5℃	DO: ±2.5% Temp: ±0.5℃
Response time	<90S	<90S	<90S
Working pressure	<0.2Mpa	<0.2Mpa	0.1Mpa
Film life	2 years	1 year	1 year
Housing material	SS316L	Titanium alloy	POM
Install method	¾”NPT thread	¾”NPT thread	¾”NPT thread
Probe size	φ41×140mm	φ41×140mm	φ32×155mm
Weight	1000g	900g
