Multi-parameter Water Quality Analyzer
DR5000 Multi-parameter Water Quality / Dissolved Oxygen DO / pH / ORP / Conductivity / Turbidity Analyzer
Model No： DR-5000
APPLICATIONS： Aquaculture/Aquaponics, Water treatment, Environmental Monitoring
PRINCIPLE： DO: Fluorescence/ EC: Electromagnetic induction/ Turbidity:90°near-infrared light scattering beam testing, etc
Advantages
- 1 transmitter + 1-5 separate sensors, freely combined, easy installation & replacement.
- Full intelligent, smart control
- 7″ LCD touch screen display, convenient operation
- Easy maintenance, no reagent consumption
- Power-off protection
- Wide range of applications
Product Description

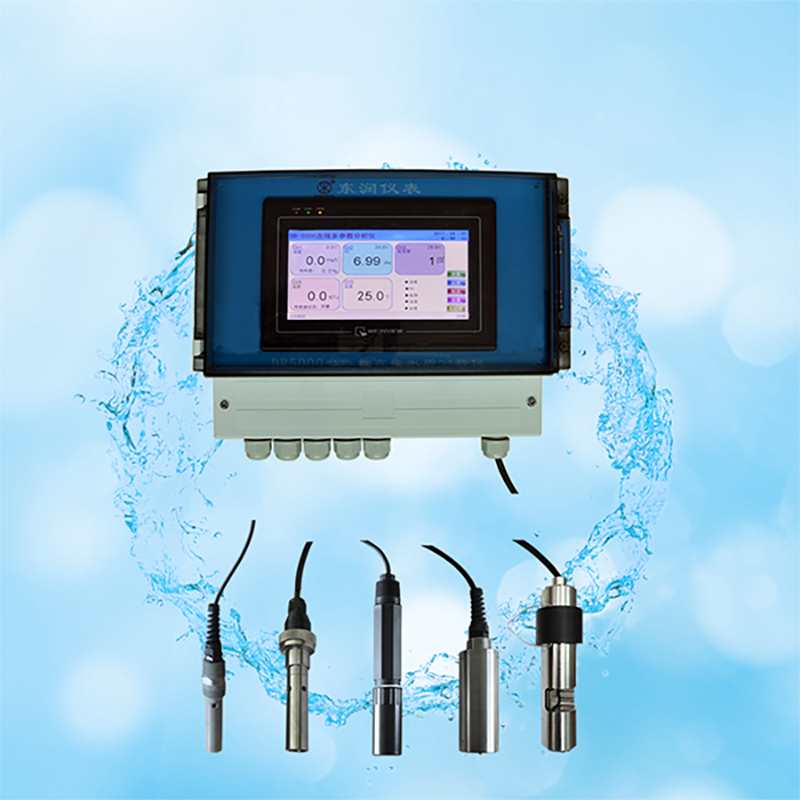

DR-5000 multi-parameter water quality analyzer is a highly integrated wall-mounted instrument, which can test 5 different parameters at the same time.
The high integration, easy usability and competitive cost makes DR-5000 the perfect choice for multi-parameter monitoring in water treatment, aquaculture and other applications.
Specification
| DR 5000 Technical Parameters | ||||||
| Temperature | PH / ORP Sensor | Dissolved Oxygen Sensor | Conductivity Sensor | Turbidity Sensor | Residual Chlorine Sensor | |
| Measuring principle | platinum resistance | Glass electrode method | Fluorescence | Electrode method | 90 degrees of scattering method | Electrode method |
| Measuring Range | -10 ~ 150 ℃ | 0 ~ 14 pH | 0 ~20.00 mg/L, | 0~200~2,000~20000µS/cm | 0 ~ 100/500/3000NTU | 0~20mg/L |
| -2000 ~ + 2000mv | -5 ~60℃ | 0~2~20~200~2000mS/cm | ||||
| Response Time | <50 seconds | <60 seconds | <60 seconds | <1min | ||
| Accuracy | ± 0.2 ℃ | 0.01pH/0.5mV | 0.1 mg/L | ±0.01 % | 2% | 2%F.S |
| Installation Type | Immersion Type | Immersion Type | Immersion Type | Immersion | Flow type Immersion type | flow type |
| Piping Type | ||||||
