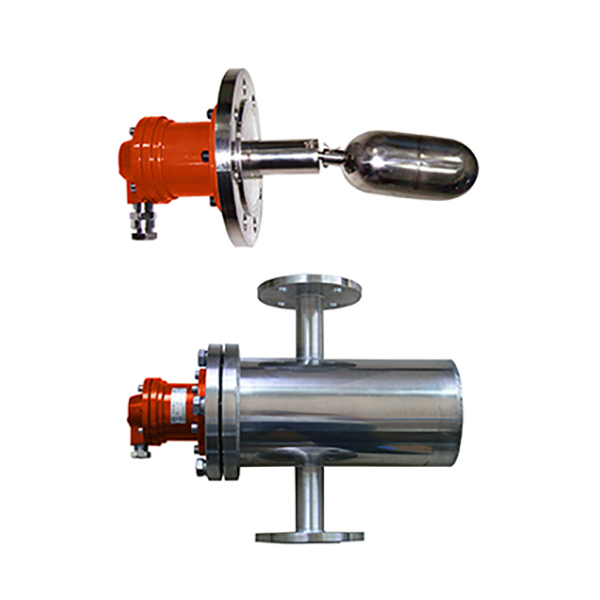

Float Level Switch

Model No: UQK

APPLICATIONS: Petrochemical,electricity, mining etc

PRINCIPLE: Magnet steel homogeneous repulsion principle

Products Categories

Advantages

  1. Simple structure, easy installation
  2. Stable performance, easy maintenance
  3. Cost-effective
  4. Wide range of applications

Product Description

UQK series side mounted floating ball liquid level switch is suitable for liquid level control of various open or pressured vessels in industrial production process. When the liquid level rises to the high limit or drops to the low limit, the switch operates and sends out a control alarm signal to control the opening and closing of the pump and valve. The newly designed UQK series has a self-checking liquid level switch, which can monitor the switch status while the device is running to ensure the normal operation of the switch and the safe operation of the system.

Technical Parameter

Operating pressure Ordinary type ≤1.OMpaExplosion-proof ≤4.0MPa
Operating temperature 0~100℃   0~150℃
Contact capacity 220VAC,150 W,1A/3A
Medium density ≥0.65g/cm3
Material The part that contacts with the liquid: H62 or 1Cr18Ni9TiExplosion-proof shell: ZL102 sprayed by paint
Electrical interface M20×1.5 internal thread
Flame-proof dIIBT4 flame-proof type, ibIICT4 intrinsically safe type
Connection flange dIIBT4 flame-proof type, ibIICT4 intrinsically safe type

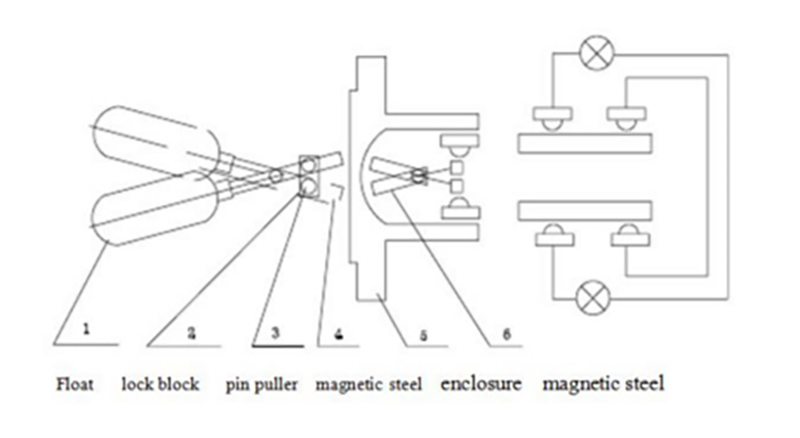

Structure and Outline Drawing

Float Level Switch 02
