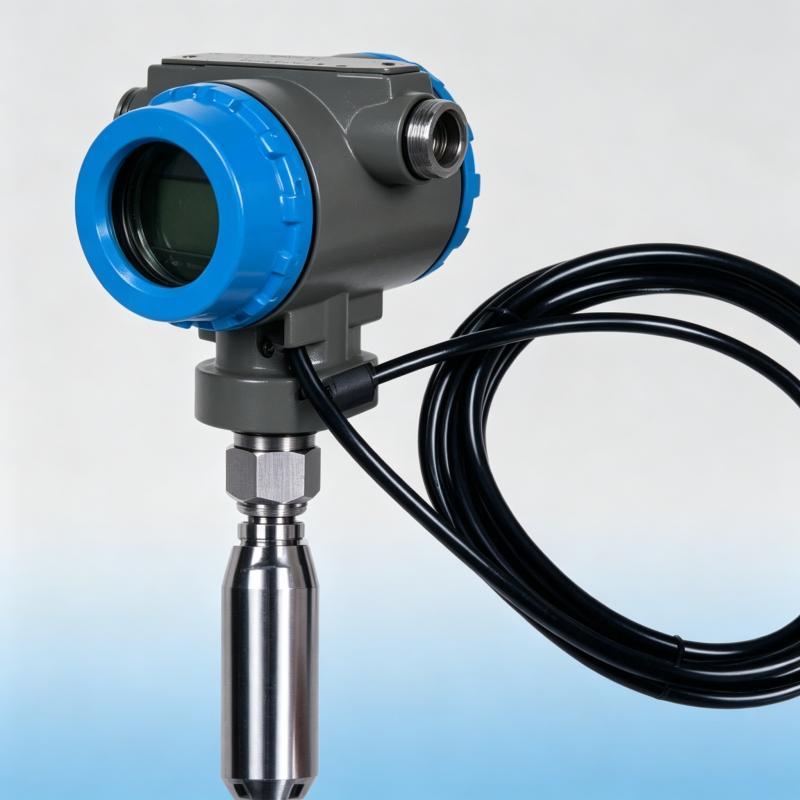

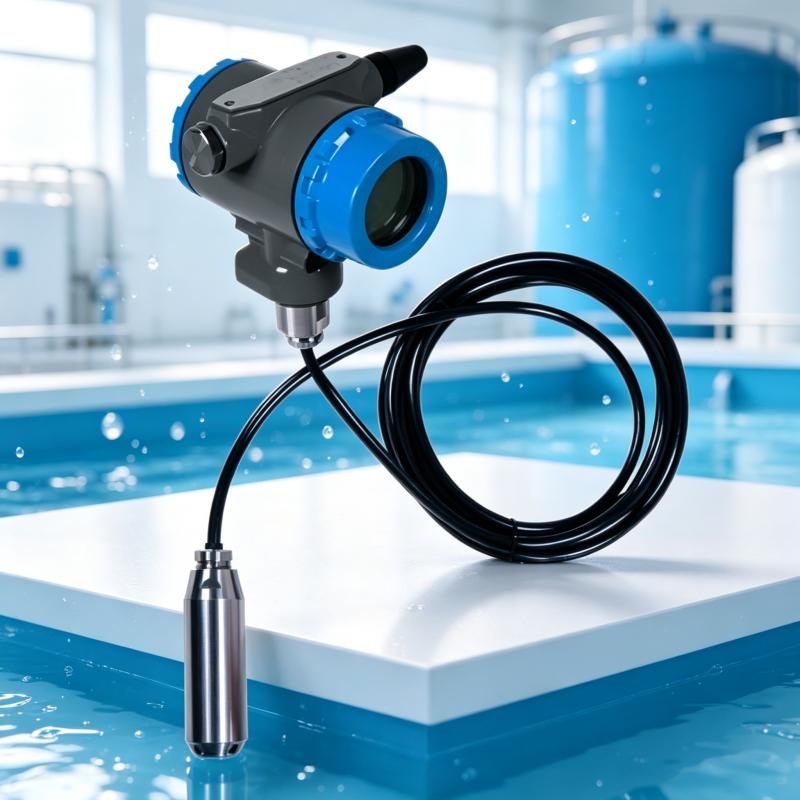

UMD-99 Series Static Pressure Level Gauge Transmitter
More Suitable for All Kinds of Water Level Measurement
Utilizing the principle that liquid static pressure is directly proportional to the liquid height for measuring liquid level. Equipped with a dry ceramic capacitor imported from the United States, featuring high stability and reliability, and a temperature compensated and isolated diaphragm-type diffused silicon pressure sensor. Economical pricing, simple installation, and usage can be inserted from the top.
HART COMMUNICATION PROTOCOL
PCEC
ExiaIICT6Ga
CNAS
Three Reasons To Choose Dongrun Static Pressure Level Gauge
Imported Pressure Core
0 to 80℃ wide temperature compensation, stable and low drift for long-term use
Intelligent Transmitter Board with Hart
Passive range migration, high-precision temperature compensation, compatible with HART protocol communication
Moisture-proof and Breathable
The cylinder is filled with desiccant gel, equipped with an integrated polymer vent plug for atmospheric balance
How To Choose The Appropriate Static Pressure Level Gauge Probe

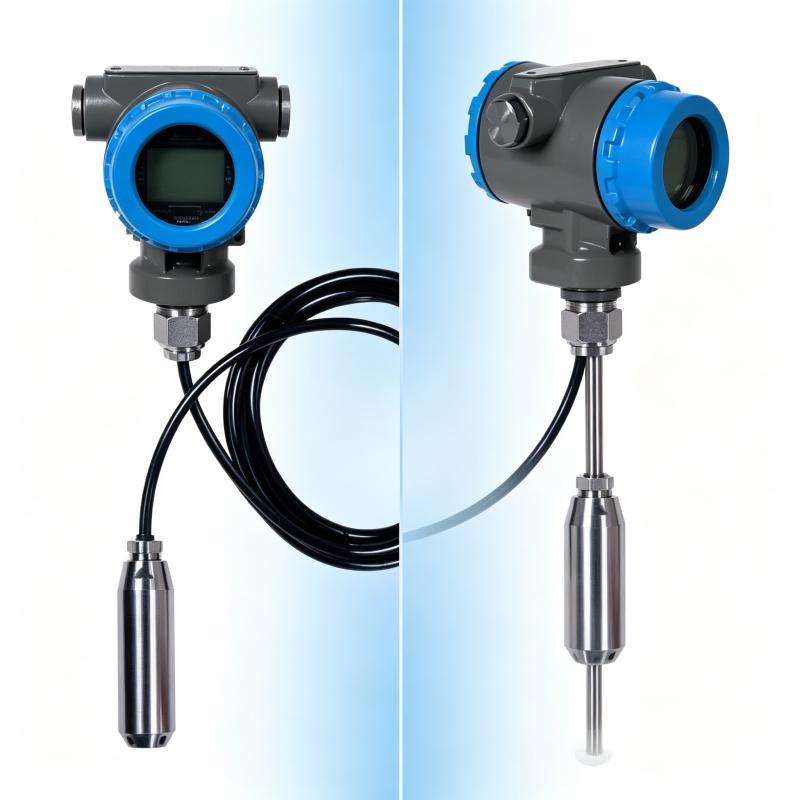

Ceramic capacitor pressure sensor product feature
- It has strong resistance to overload and impact. The overload capacity can exceed five times the range.
- It has high stability, with an annual error rate of less than 0.1% F.S. This technical parameter is several times higher than that of other capacitive transmitters.
- The temperature drift is minimal. By eliminating the intermediate liquid in the pressure measurement element, the sensor not only achieves extremely high measurement accuracy but also is less affected by temperature gradients.
- Using unique ceramic and polytetrafluoroethylene materials, it has special anti-corrosion properties and can withstand most corrosive media.
Diffused silicon pressure sensor product feature
- It has strong resistance to overload and impact. The overload capacity can exceed 1.5 times the range.
- High stability, with an annual improvement of more than 0.2% F.S.
