Tank Front Display Indicator丨Intelligent single-channel tank front display instrument

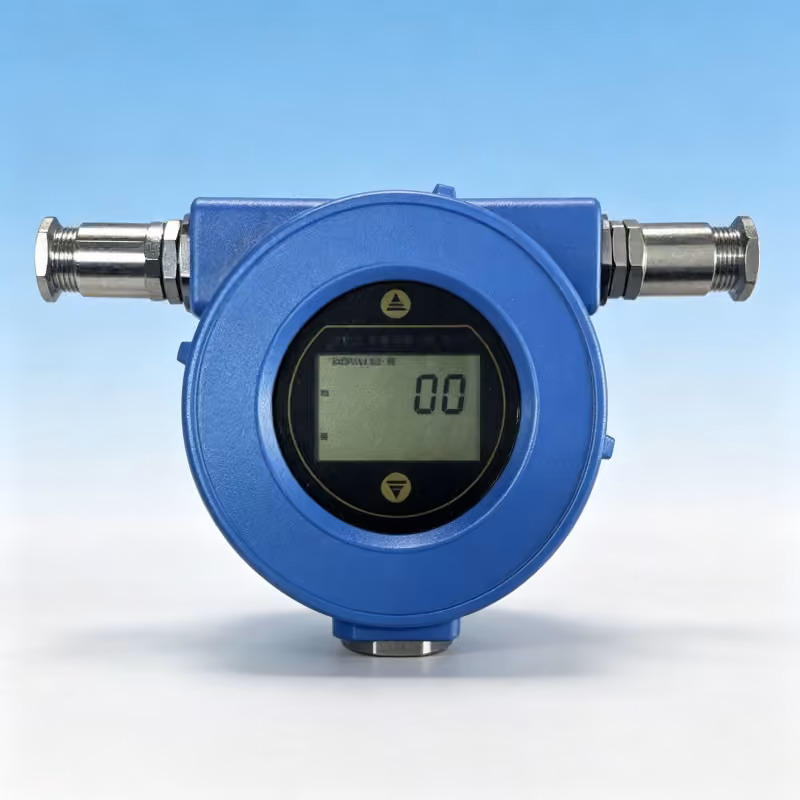

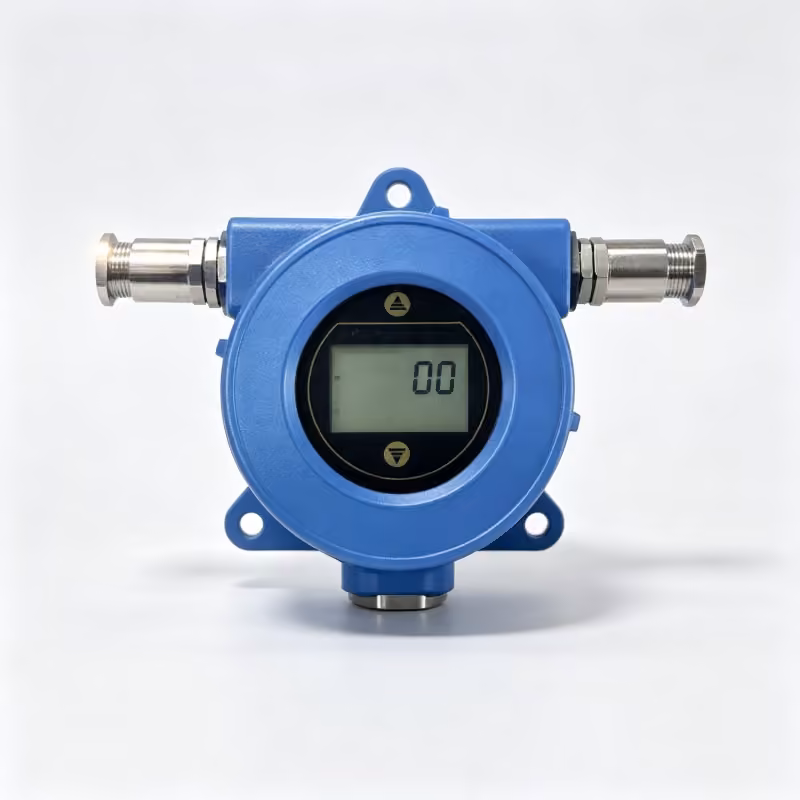

Intelligent single-channel tank front display instrument

By connecting individual digital magnetostrictive liquid level probes via the standard MODBUS protocol RS485 bus, the measurement data of the liquid level below the tank can be displayed. At the same time, data transmission is also carried out with the upper computer of the control room.
The dot-matrix liquid level display shows the current liquid level, while the secondary display can switch to display the interface and up to 5 points of temperature.
12-24VDC power supply.
Explosion-proof design of dIICT6. The instrument can be operated without opening the cover through infrared switch.

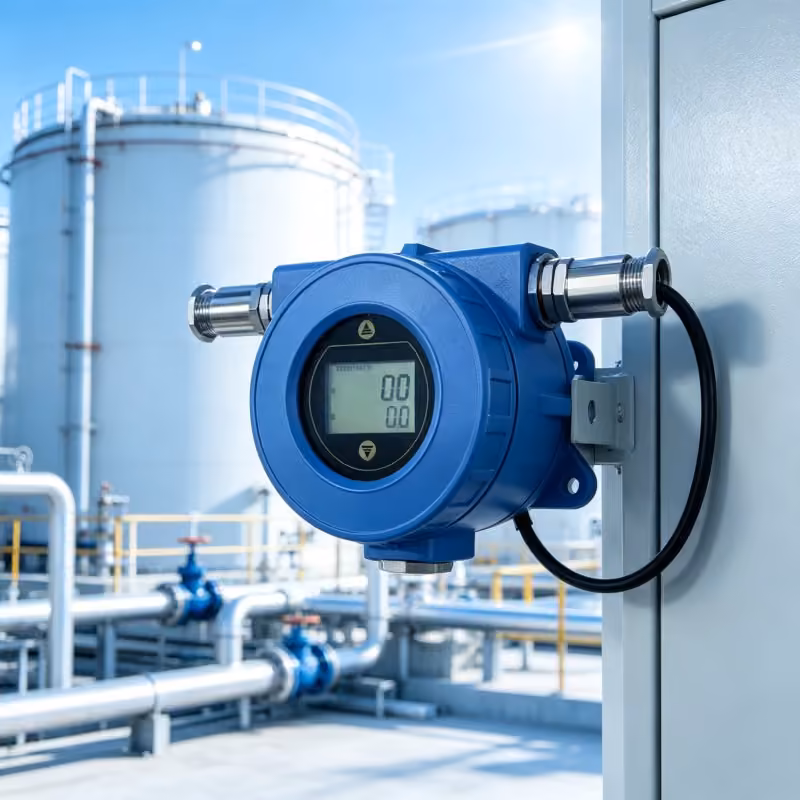

Optional wall-mounted fixed or pipe bracket installation forms.

Functionality:
Displays measurement data from tank bottoms or indoor environments while transmitting data to the host computer in the control room.

[Single-Channel Display Meter]:

Input: 4-20mA or MODBUS RS485 bus protocol
Dot-matrix LCD display: The main display shows the current liquid level, while the secondary display can switch to interface level and up to 5 temperature points
Power supply: 12-24VDC
Explosion-proof design: dIICT6
Mounting options: Wall-mounted or pipe bracket installation

[Multi-Channel Monitoring Instrument]:

Input: MODBUS RS485 bus protocol
Displays liquid level, interface level, temperature, alarms, volume, and other data
Meets electromagnetic compatibility requirements and features transient voltage suppression and surge protection
Leak detection function, upper and lower liquid level alarms, and high water level alarms
Historical records for abnormal alarm times, material inflow/outflow records, etc.
Built-in two programmable relay outputs for liquid level and temperature abnormality alarms, as well as equipment fault alarms, enabling external device connections

Get A Free Quote

Products Categories

Level Measurement

Magnetic Level Gauge

Magnetostrictive Level Gauge

Radar Level Gauge

Static Pressure Type Level Guage

Ultrasonic Level Meter

Level Switch

Online Water Sensors & Transmitters

Cast Aluminum Housing Explosion-Proof Transmitter

Wall-Mounted Transmitter

Disc-Mounted Transmitters

Multi-Parameter Transmitter

pH/ORP

Conductivity/ACID, Alkali and Salt Concentration Meter

Turbidity / Suspended Matter / Sludge Concentration

Dissolved Oxygen by Fluorescence Method

UV254

Nitrate Sensor

Disinfectant (Residual Chlorine) Sensor

Drinking Water Multi-Parameter Detector

Cleaning Sheath and Installation Accessories

Multi-parameter water testing kit (Portable)

Online Water Analyzers

Nutrients and Organic Substances

Inorganic Ions

Heavy Metals

Industrial Process Water Analysis System

Water Analysis Shelter

Water Quality Monitoring Station

Buoy-Based Water Quality Monitoring Station

Product Parameters

Input Signal: 4-20mA liquid level; liquid level + interface level + 1-5 point temperature (digital type)
Indication Type: Single-channel display meter / Multi-channel display control instrument
Power Supply Voltage: 24VDC / 220VAC
Medium Temperature: -40℃ to 300℃
Interface Type: RS-485 (Modbus) or 4-20mA + HART
On-Site Display: Optional LCD display
Protection Rating: IP65 / IP66
Explosion-Proof Grade: Exia IICT6Ga / Exd IICT6Gb
Electronics Housing Material: Cast aluminum housing or stainless steel tubular body
Protection Tube Material: 304/316L stainless steel / 304 fluorine-lined
Installation Method: Threaded or flanged

Application Scenarios

Used in conjunction with Dongrun Magnetostrictive Level Transmitters for on-site tank bottom display, control, recording, alarm, and output.

Intelligent single-channel tank front display instrument

By connecting individual digital magnetostrictive liquid level probes via the standard MODBUS protocol RS485 bus, the measurement data of the liquid level below the tank can be displayed. At the same time, data transmission is also carried out with the upper computer of the control room.
The dot-matrix liquid level display shows the current liquid level, while the secondary display can switch to display the interface and up to 5 points of temperature.
12-24VDC power supply.
Explosion-proof design of dIICT6. The instrument can be operated without opening the cover through infrared switch.
Optional wall-mounted fixed or pipe bracket installation forms.
