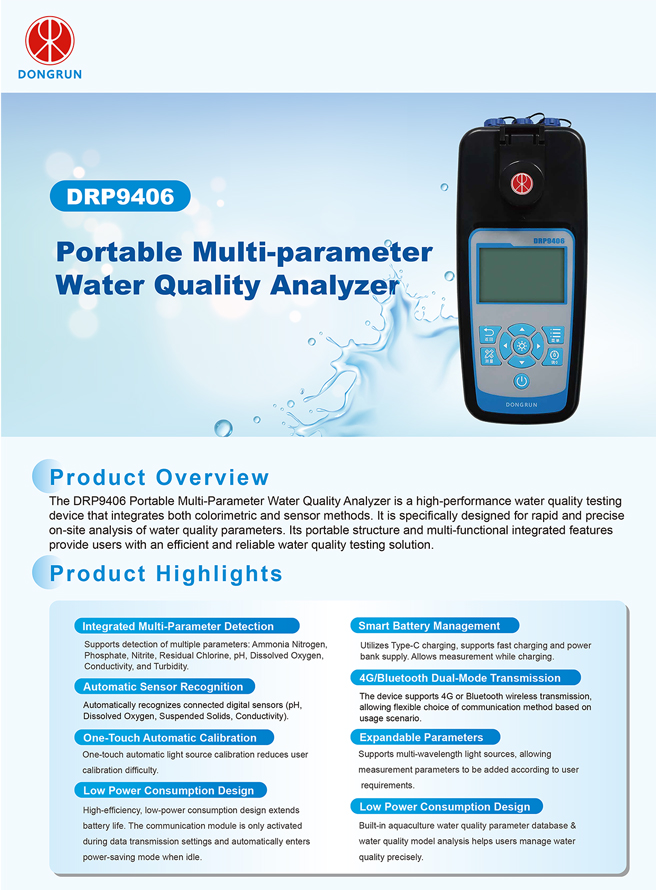

Product Overview

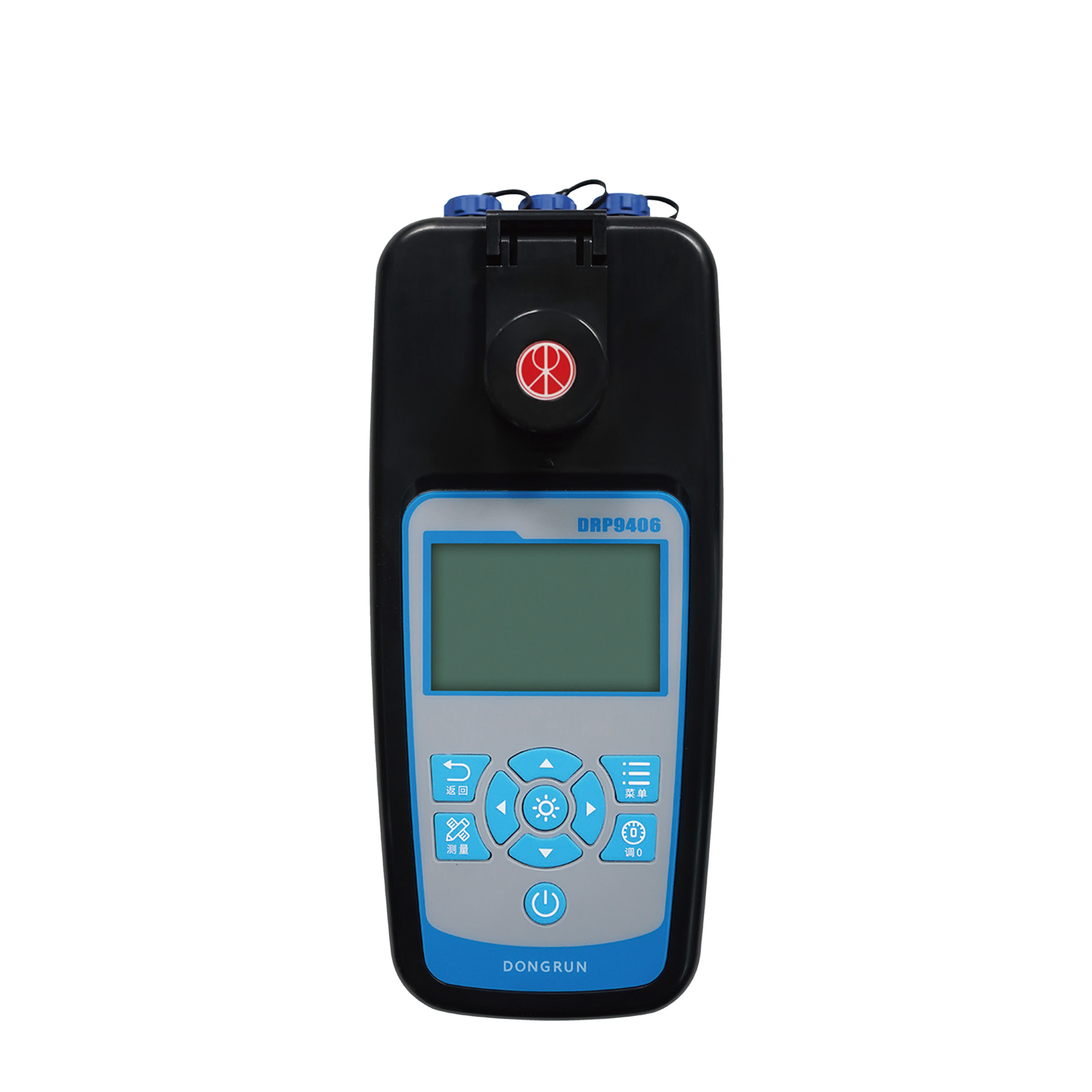

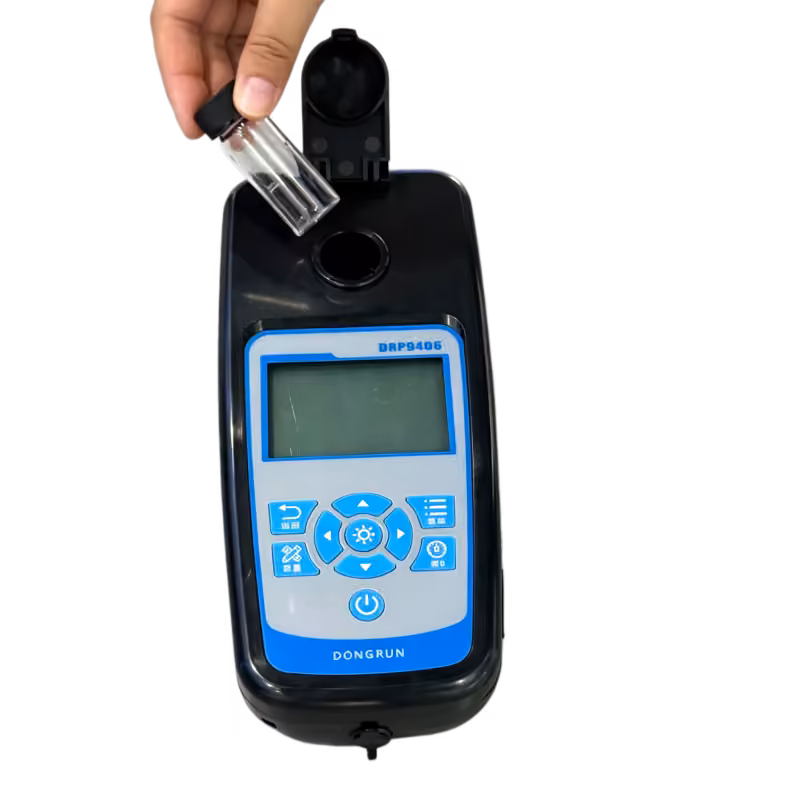

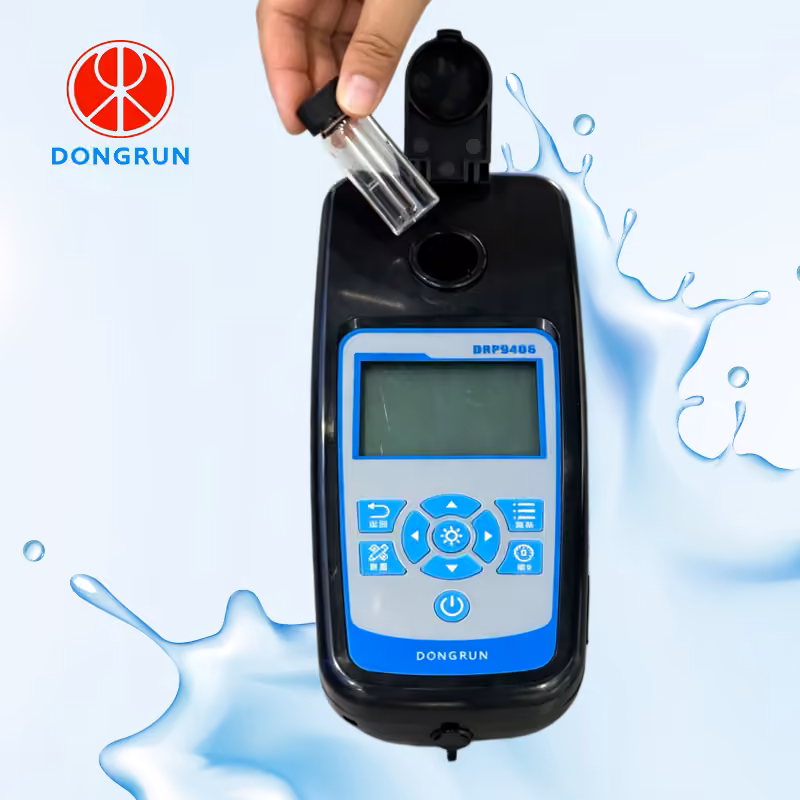

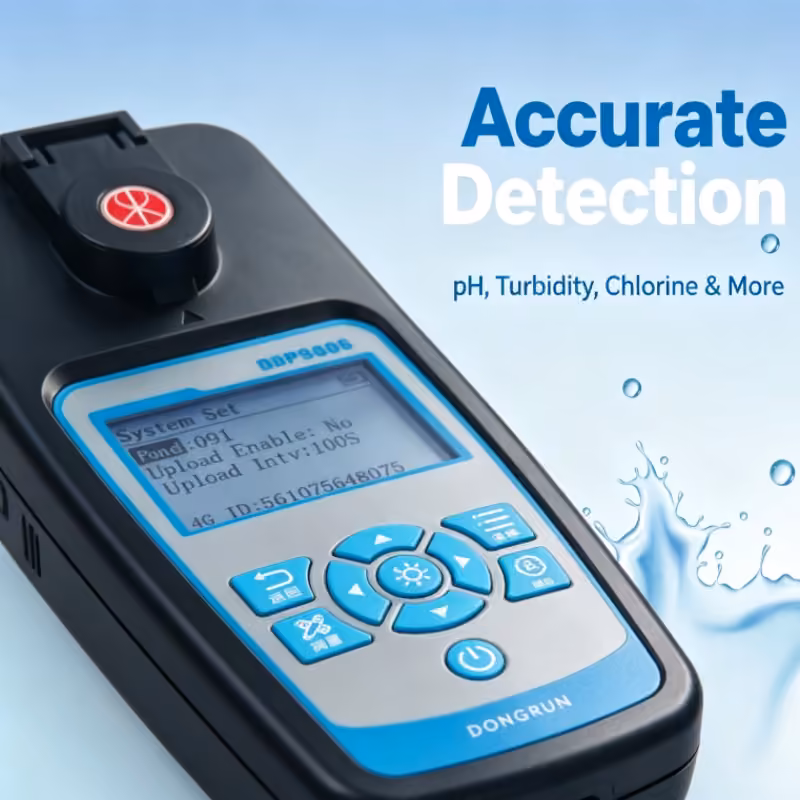

The DRP9406 Portable Multi-Parameter Water Quality Analyzer is a high-performance water quality testing device that integrates both colorimetric and sensor methods. It is specifically designed for rapid and precise on-site analysis of water quality parameters. Its portable structure and multi-functional integrated features provide users with an efficient and reliable water quality testing solution.
Product Highlights
- Integrated Multi-Parameter Detection: Supports detection of multiple parameters: Ammonia Nitrogen, Phosphate, Nitrite, Residual Chlorine, pH, Dissolved Oxygen, Conductivity, and Turbidity.
- Automatic Sensor Recognition: Automatically recognizes connected digital sensors (pH, Dissolved Oxygen, Suspended Solids, Conductivity).
- One-Touch Automatic Calibration: One-touch automatic light source calibration reduces user calibration difficulty.
- Low Power Consumption Design: High-efficiency, low-power consumption design extends battery life. The communication module is only activated during data transmission settings and automatically enters power-saving mode when idle.
- Smart Battery Management: Utilizes Type-C charging, supports fast charging and power bank supply. Allows measurement while charging.
- 4G/Bluetooth Dual-Mode Transmission: The device supports 4G or Bluetooth wireless transmission, allowing flexible choice of communication method based on usage scenario.
- Expandable Parameters: Supports multi-wavelength light sources, allowing measurement parameters to be added according to user requirements.
- Low Power Consumption Design: Built-in aquaculture water quality parameter database & water quality model analysis helps users manage water quality precisely.

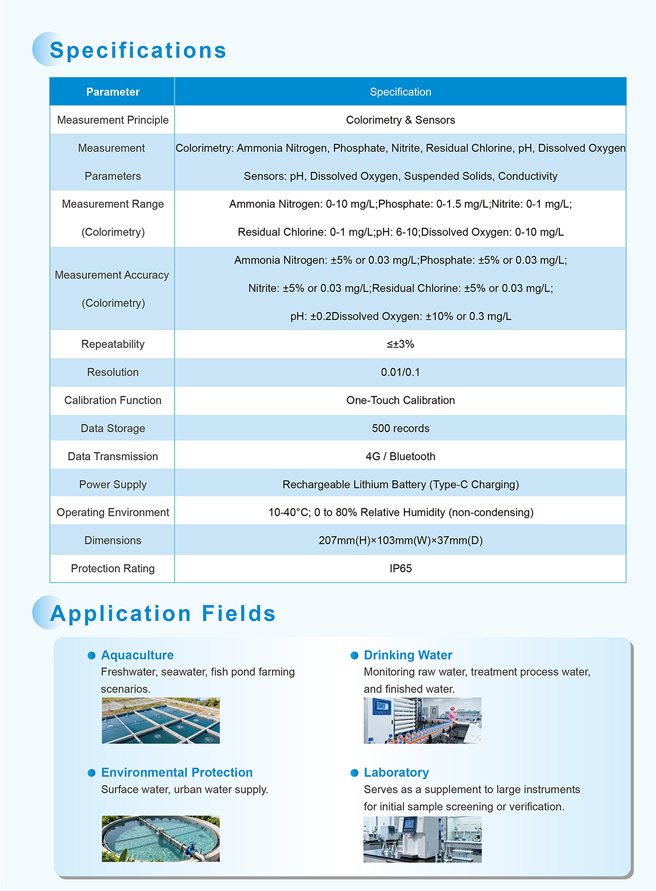

Specifications
| Parameter | Specification |
|---|---|
| Measurement Principle | Colorimetry & Sensors |
| Measurement Parameters | Colorimetry: Ammonia Nitrogen, Phosphate, Nitrite, Residual Chlorine, pH, Dissolved Oxygen; Sensors: pH, Dissolved Oxygen, Suspended Solids, Conductivity |
| Measurement Range | Ammonia Nitrogen: 0-10 mg/L; Phosphate: 0-1.5 mg/L; Nitrite: 0-1 mg/L; |
| Repeatability | ≤±3% |
| Resolution | 0.01/0.1 |
| Calibration Function | One-Touch Calibration |
| Data Storage | 500 records |
| Data Transmission | 4G / Bluetooth |
| Power Supply | Rechargeable Lithium Battery (Type-C Charging) |
| Operating Environment | 10-40°C; 0 to 80% Relative Humidity (non-condensing) |
| Dimensions | 207mm(H)×103mm(W)×37mm(D) |
| Protection Rating | IP65 |
Application Fields
- Aquaculture: Freshwater, seawater, fish pond farming scenarios.
- Environmental Protection: Surface water, urban water supply.
- Drinking Water: Monitoring raw water, treatment process water, and finished water.
- Laboratory: Serves as a supplement to large instruments for initial sample screening or verification.
—————————————————————————————————————————————————————————————————————————————————————————————————
