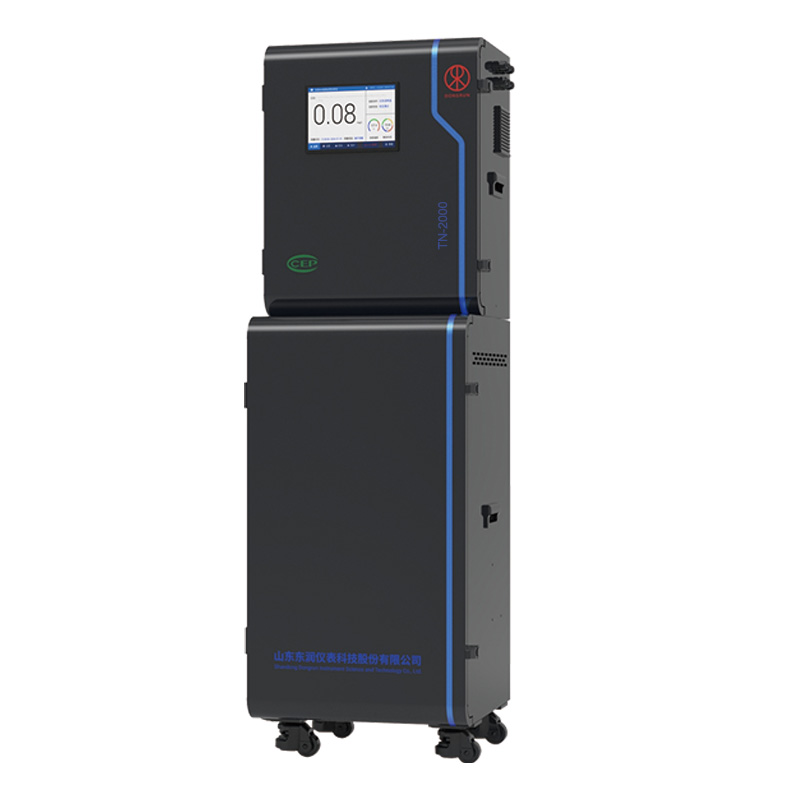

Online Total Nitrogen Analyzer (TN)

The TN-2000 Online Water Total Nitrogen Analyzer is developed based on the latest 2022 environmental certification and testing standards. It enables unattended automatic monitoring of total nitrogen content in various water bodies and is widely applicable in surface water monitoring, environmental pollution source monitoring, industrial process water monitoring, municipal wastewater monitoring, wastewater treatment plant monitoring, and other related fields.

Products Categories

Online Total Nitrogen Analyzer (TN)

Typical Applications
The TN-2000 Online Water Total Nitrogen Analyzer is developed based on the latest 2022 environmental certification and testing standards. It enables unattended automatic monitoring of total nitrogen content in various water bodies and is widely applicable in surface water monitoring, environmental pollution source monitoring, industrial process water monitoring, municipal wastewater monitoring, wastewater treatment plant monitoring, and other related fields.

Product Features

  • Advanced sequential injection platform, significantly reducing the number of components for a simple and easy-to-maintain structure.

  • High-precision stable sample injection via syringe pump with non-contact fluid dispensing design. Requires less dilution water for high-range measurements and features short dilution times.

  • 10-port injection valve utilizing laser engraving technology for precise control of groove dimensions and positioning. The sapphire valve core offers ultra-high wear resistance and corrosion resistance, ensuring long service life and excellent stability.

  • Integrated quartz digestion/colorimetric unit with high absorbance resolution.

  • Reagent flow path resistant to strong acids and alkalis, with reagents storable at room temperature for over 30 days.

  • Power failure protection design prevents data loss and enables automatic resumption of operation upon power restoration.

  • Intelligent fault early warning and automatic reset function prevents abnormal instrument shutdown.

  • Utilizes reflux digestion technology and an innovative automatic direct-air cooling system to improve digestion and cooling efficiency, shortening sample processing time.

  • Optional development of special functions and services to ensure user-friendly and convenient operation.

  • Innovative dual-light-path design employs high-performance light sources, significantly improving the utilization of 220nm measurement light.

  • Automatic verification and judgment function complies with the requirements of HJ 355-2019 “Technical Specification for Operation of Water Pollution Source Online Monitoring Systems (CODcr, NH₃-N, etc.)”.

Working Principle
The analyzer employs the alkaline potassium persulfate digestion method. The water sample undergoes rapid digestion under sealed, high-temperature, and high-pressure conditions, converting nitrogen-containing compounds into nitrate nitrogen. UV spectrophotometry is then used to measure the absorbance at wavelengths of 220nm (A₂₂₀) and 275nm (A₂₇₅). The corrected absorbance (A) is calculated using the formula A = A₂₂₀ – 2A₂₇₅, from which the total nitrogen content is derived. The instrument’s measurement principle conforms to the standard HJ 636-2012 “Water Quality – Determination of Total Nitrogen – Alkaline Potassium Persulfate Digestion UV Spectrophotometric Method”.

Technical Specifications

Specification Technical Parameter
Range 0~5/10/20/50/100/200/400 mg/L, Manual/Auto range switching available. Other ranges customizable.
**Indication Error *** ±5%
Repeatability ≤2%
Quantitation Limit ≤0.3 mg/L
Resolution 0.01 mg/L
24h Stability Drift ≤0.5%
24h Flow Rate Drift ≤1%
*Note Tested at 50 mg/L range.

Why Choose Dongrun Online Analyzers?

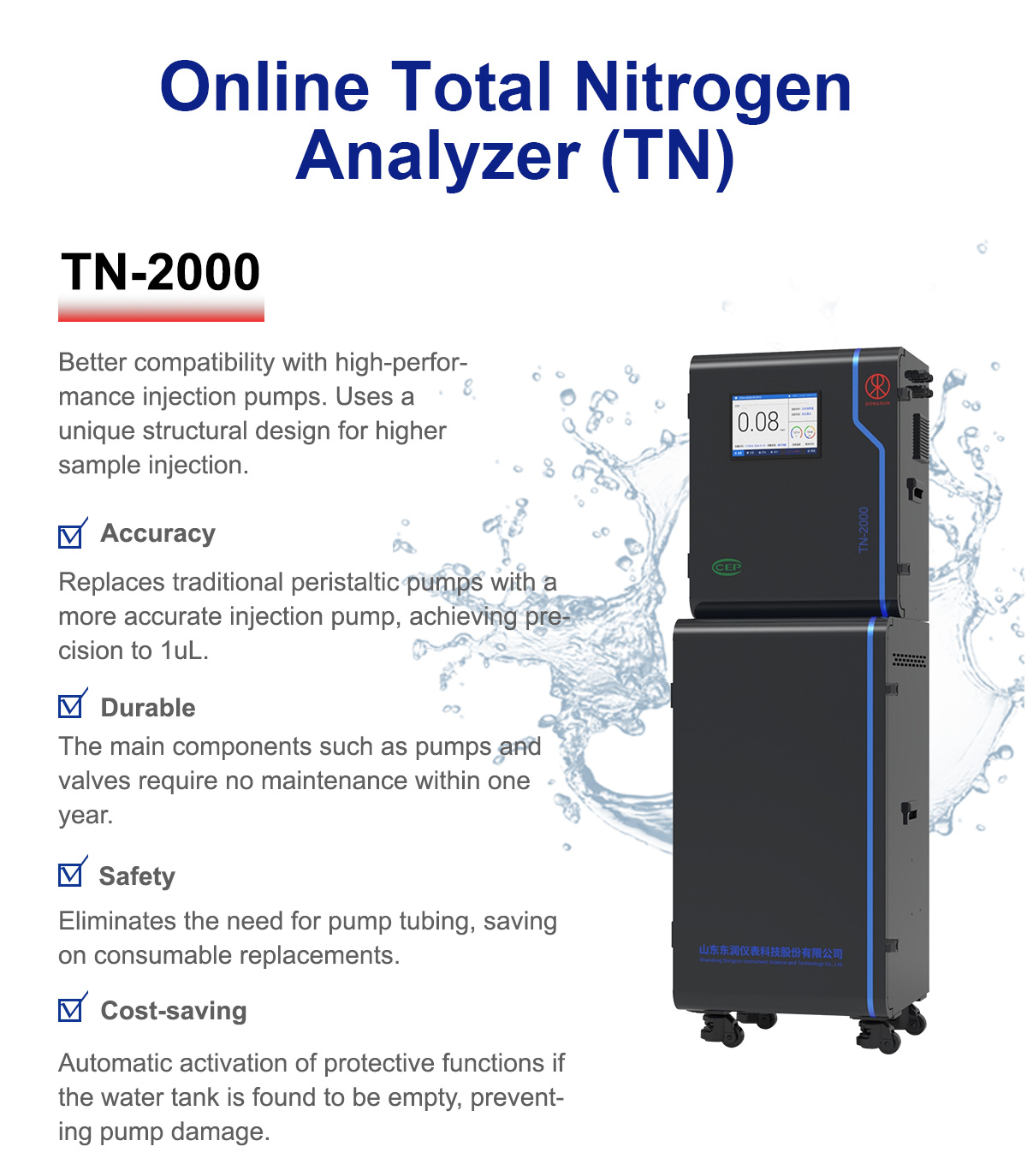

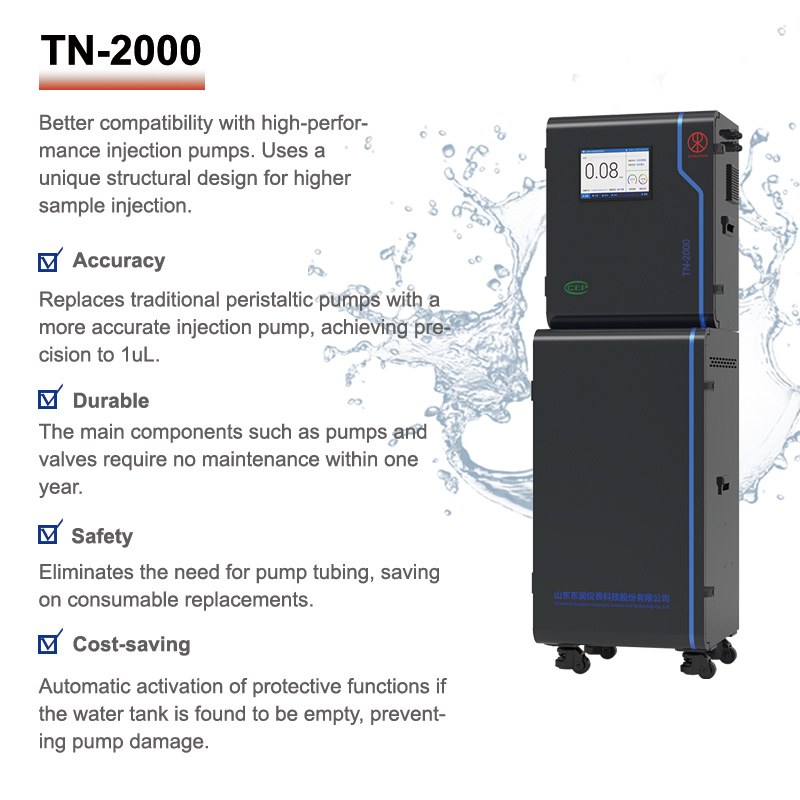

1μL High-precision Injection System Exclusive Patented Design.



Better compatibility with high-performance injection pumps.Uses a unique structural design for higher sample injection.
  • Accuracy

    Replaces traditional peristaltic pumps with a more accurate injection pump, achieving precision to 1μL.

  • Durable

    The main components such as pumps and valves require no maintenance within one year.

  • Cost-saving

    Eliminates the need for pump tubing, saving on consumable replacements.

  • Safety

    Automatic activation of protective functions if the water tank is found to be empty, preventing pump damage.

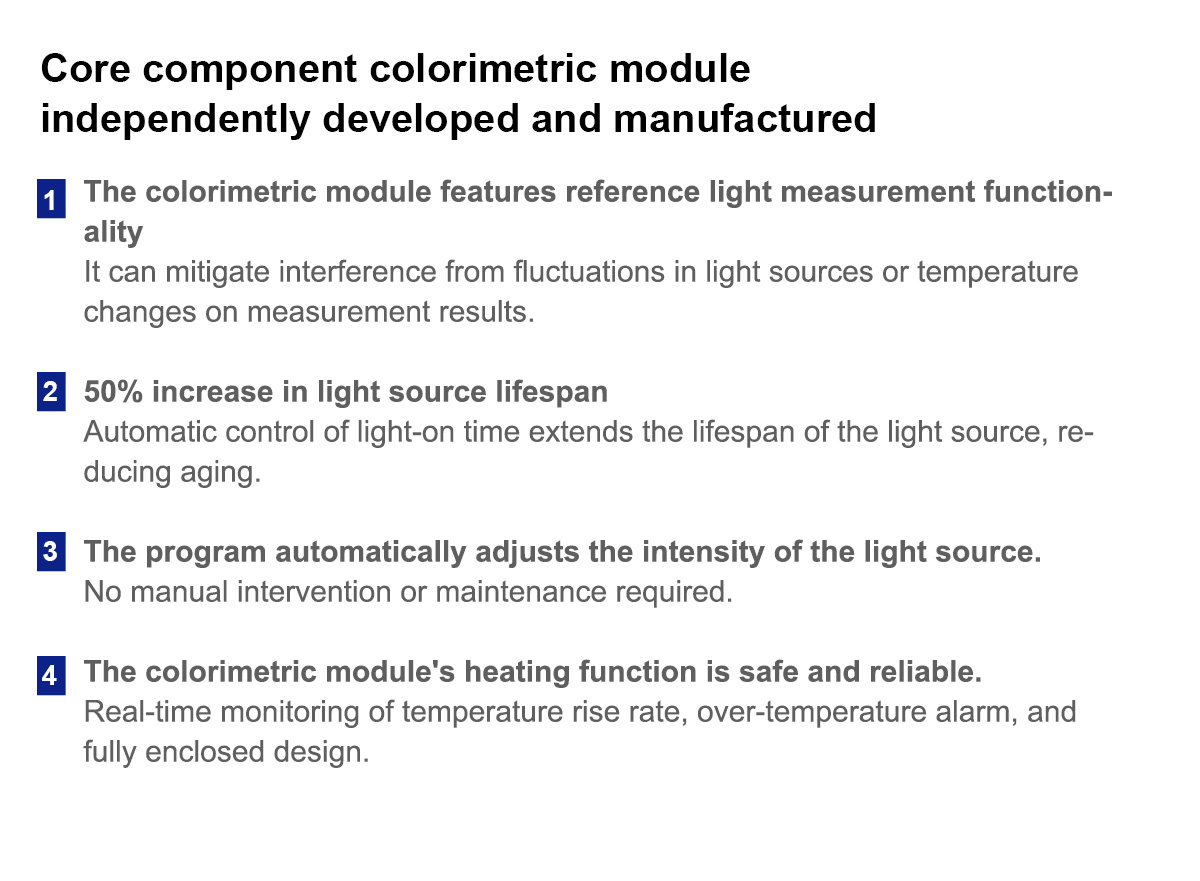

Core Component Colorimetric Module Independently Developed and Manufactured

  • The colorimetric module features reference light measurement functionality

    It can mitigate interference from fluctuations in light sources or temperature changes on measurement results.

  • 50% increase in light source lifespan

    Automatically controls light-on time to extends the lifespan of the light source, reducing aging.

  • The program automatically adjusts the intensity of the light source

    No manual intervention or maintenance required.

  • The colorimetric module’s heating function is safe and reliable

    Real-time monitoring of temperature rise rate, over-temperature alarm, and a fully enclosed design.

Advanced Quality Control Calibration System

option Regular brands Dongrun Value
Failure verification calibration Manual adjustment in case of verification failure Instrument automatically initiates recalibration in case of verification failure More convenient
Selectable range Only fixed range High, medium, and low multiple ranges are available Applicable range is more extensive
Verification method Only range verification Automatic zero-check and range verification, two methods More accurate
Compared to conventional brands, Dongrun Intelligent Control customizable systems can detect instrument anomalies earlier, facilitate calibration more conveniently, have a wider application range, and provide more accurate data.

Low-Medium-High 3-in-1 Range System

  • Three ranges

    Instrument offers high, medium, and low three ranges.

  • Customizable range values

    Users can define range values for both the medium and high ranges. instrument will automatically adjust to match.

  • Effortless operation

    After switching between manual and automatic modes, there’s no need to recalibrate the instrument.

    After changing the range, only single-point calibration is required, with no need for calibration of the working curve.

    One-click waste discharge and one-click reagent filling.

    Key operations are visualized, allowing real-time signal monitoring.

  • Two modes of manual and automatic

    In manual mode, users can select a specific range for measurement.

    In automatic mode, the instrument will automatically switch ranges based on the measurement results.
