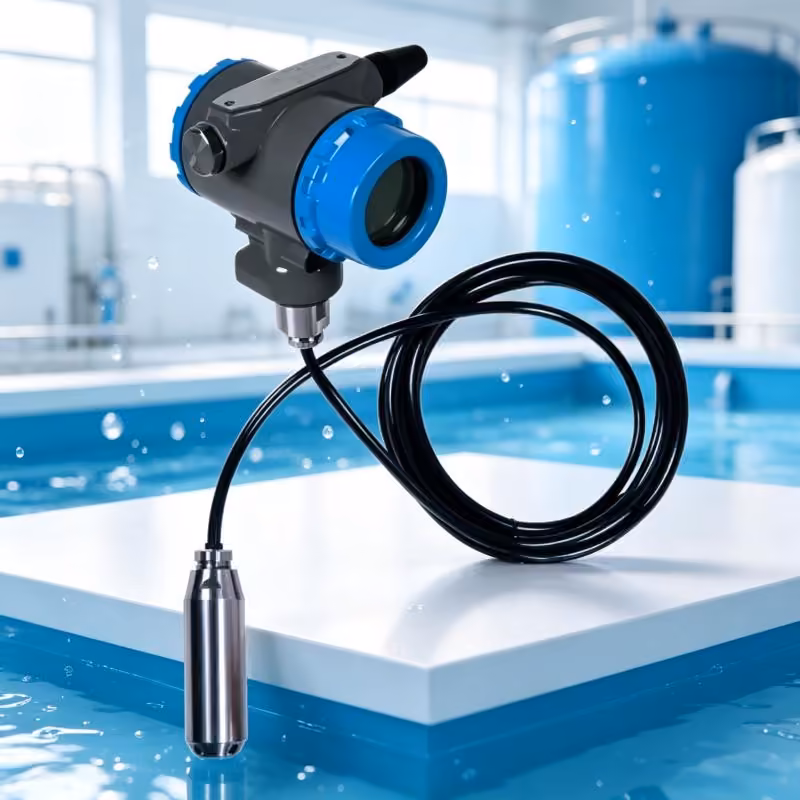

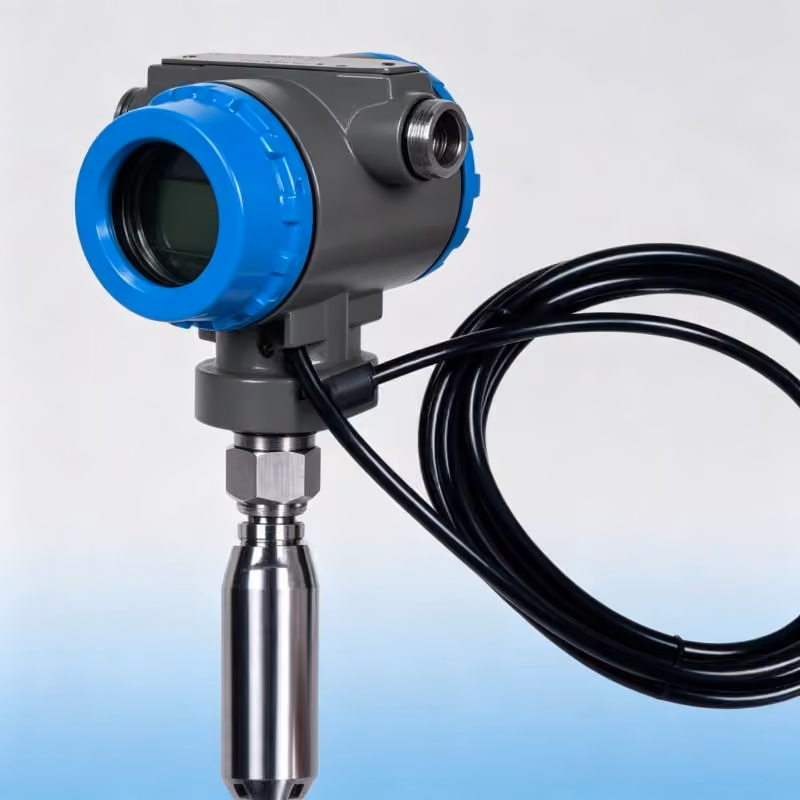

Flexible cable type Model:UMD-99
Model Introduction
- Wide Temperature Compensation (0～80℃): Ensures long-term stability with low drift.
- Intelligent Transmitter Circuit: Enables calibration settings and passive range migration.
- High-Precision Temperature Compensation: Compatible with HART protocol communication.
- Multi-Layer Moisture-Proof Design: Sealed welded sensor structure for enhanced durability.
- Simple Structure: Easy installation, operation, and maintenance.
Products Categories
Product Parameters
Measurement Range:

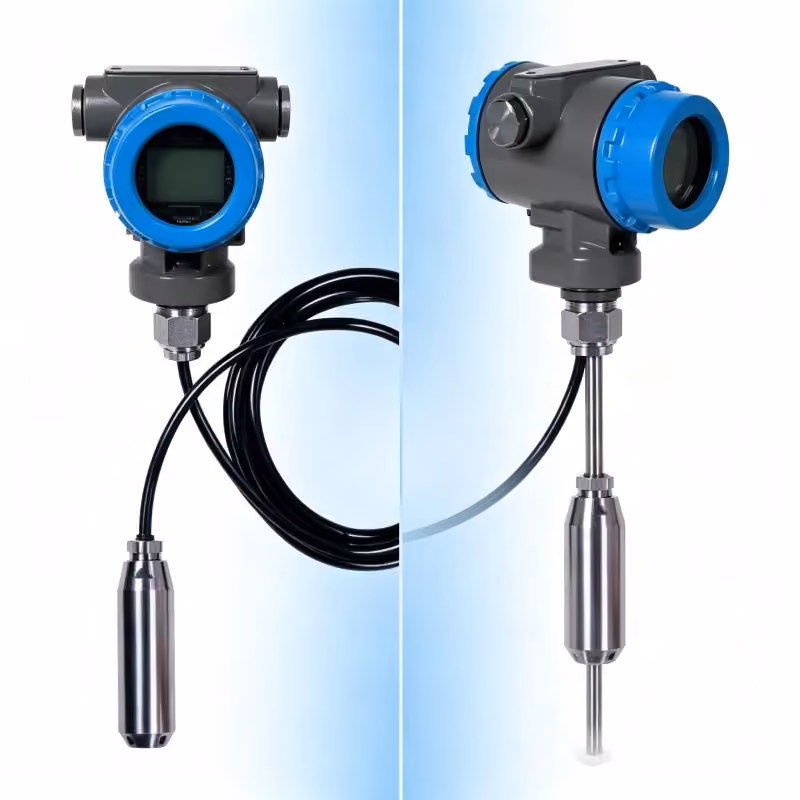

- Stainless Steel Rod Type: 0～5m
- Cable Type: 0～100m
- Accuracy Class: 0.5 level, 0.2 level (system accuracy)
- Ambient Temperature: -20℃～80℃
- Relative Humidity: ＜95%
- Medium Temperature: -20℃～+80℃
- Long-Term Stability: ＜0.1% F.S/year
- Temperature Stability: ＜±0.1% per 10℃
- Power Supply: 24V DC
- Signal Output: 2-wire 4～20mA output, intelligent type with HART protocol
- Medium Density Range: 0.5g/cm³～2.0g/cm³
Overload Capacity (Standard Range):
- UMD-99A: 5 times
- UMD-99B: 2 times
Protection Rating:
- Transmitter: IP65
- Sensor: IP68
- Transmitter Housing Material: Die-cast aluminum
Sensor Material:
- Standard Type: 304/316L stainless steel
- Corrosion-Resistant Type: PTFE + Ceramic
Connection Size:
- Flange diameter ≥ DN50
- Thread M48×2
Application Scenarios
Mainly used for water level measurement, suitable for clean water, wastewater, surface water, various tanks, water reservoirs, pools, wells, and troughs.
