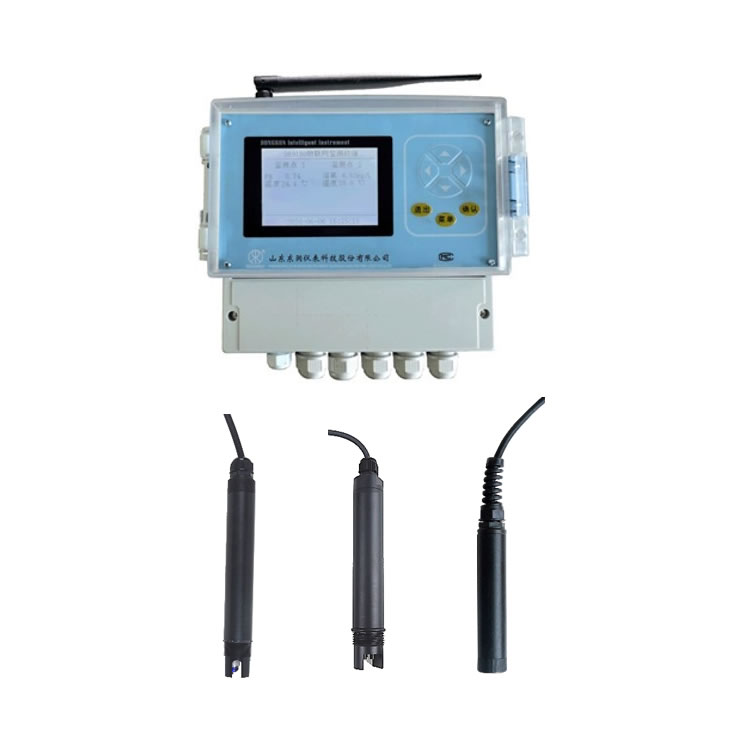

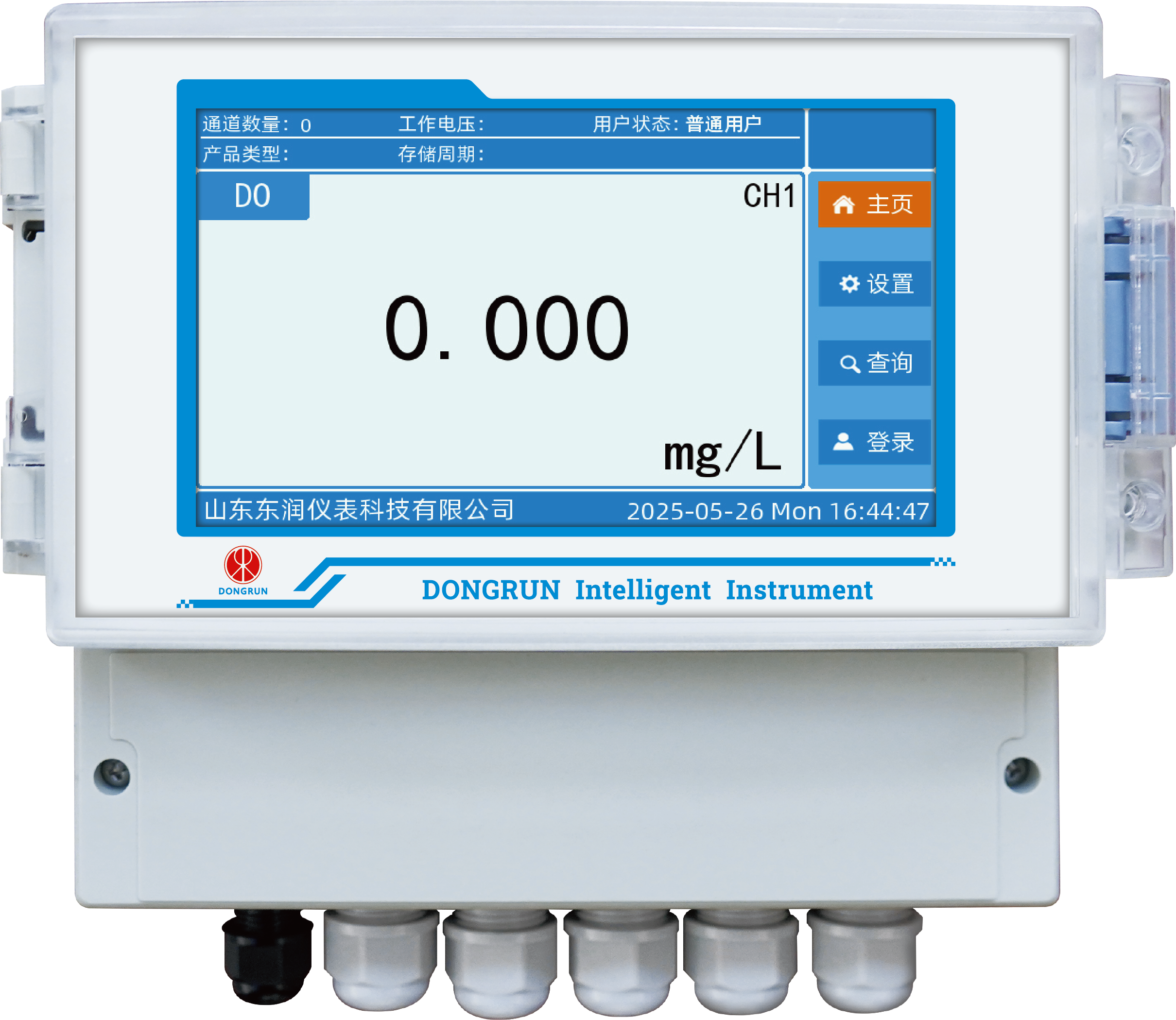

DR6000E Universal Multi-Channel Digital Controller
Overview

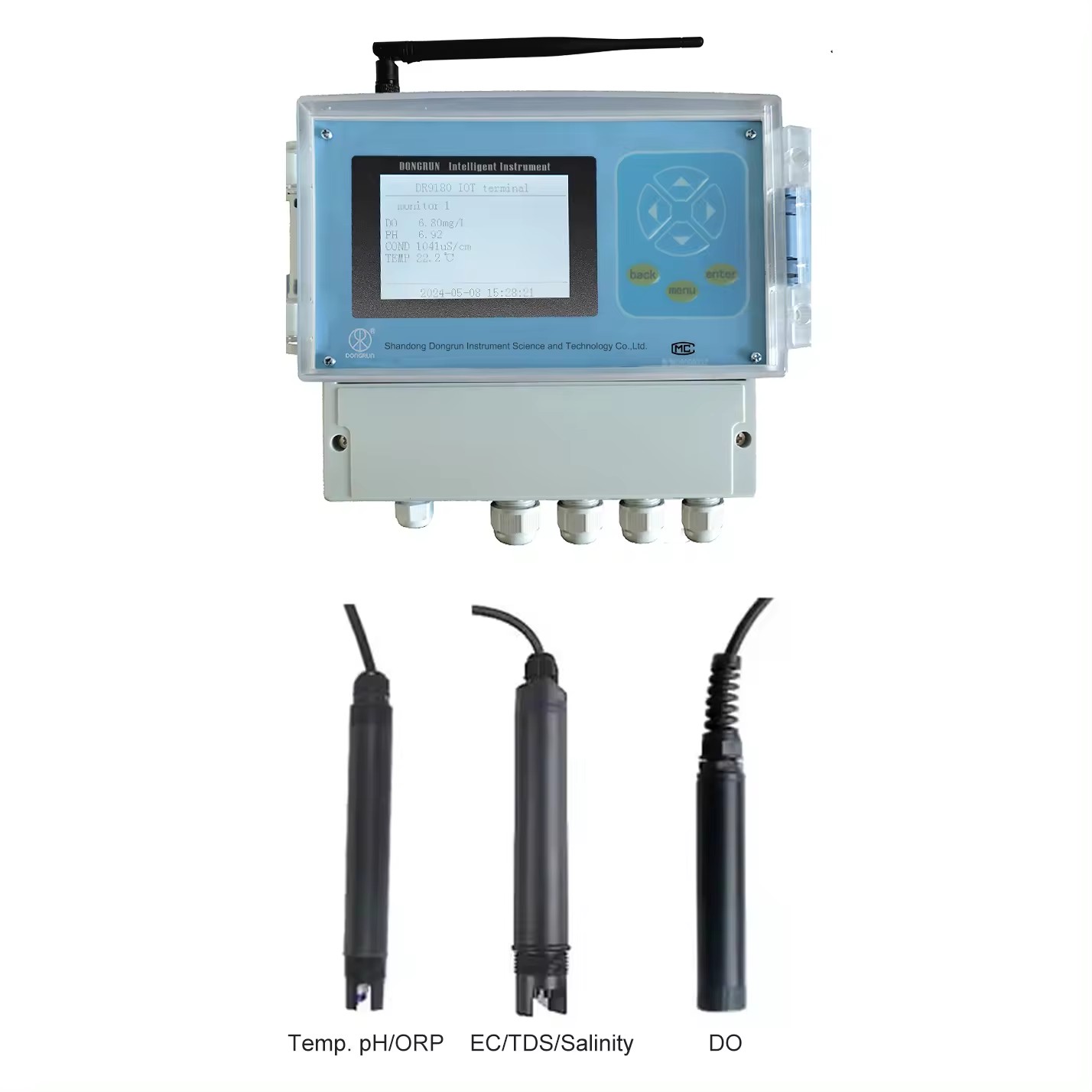

The DR6000E is a universal multi-channel digital controller capable of simultaneously connecting to multiple Dongrun digital electrodes. It features data display, storage, and various data transmission functions.
Highlights
-
Chinese/English Interface: Utilizes a logical multi-level menu structure with flexible language switching for simple and convenient operation.
-
Touch Screen: Features a 7-inch touch screen, both aesthetic and practical. It can display sensor measurements, custom sensor parameters, temperature values, signal outputs, time, and other information on a single screen.
-
Reliable & Stable: Employs a four-wire instrument design with internal power and signal isolation for strong anti-interference capability.
-
Water & Dust Resistance: Rated IP65, suitable for outdoor use.
-
Smart Calibration: Allows one-click sensor calibration and one-click sensor address modification via the screen.
-
Power Failure Protection: Built-in memory chip ensures settings and recorded data are retained after power loss.
-
Flexible Configuration: Optional 4G module, 5 channels of 4-20mA analog output, 3 relay outputs, and 220V or 24V power supply based on requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Display | 7-inch; 800*480 resolution touch screen (24V powered) |
| Digital Input | 8 channels optional |
| Analog Output | 5 channels of 4-20mA optional |
| Relay Output | 3 channels optional, 220VAC/5A, 25VDC/5A |
| Digital Communication | 1x RS232, 1x RS485, standard Modbus protocol |
| Operating Environment | 0-45℃; 0-95% RH |
| Protection Rating | IP65 |
| Housing Material | PC |
| Dimensions | 213mm(W) × 185mm(H) × 117mm(D) |
| Operating Voltage | 220VAC / 24VDC |
| Sensor Supply Voltage | 12V (one 24V channel optional) |
| Languages | Chinese, English |
Application Fields
-
Water Utilities
-
Water Conservancy
-

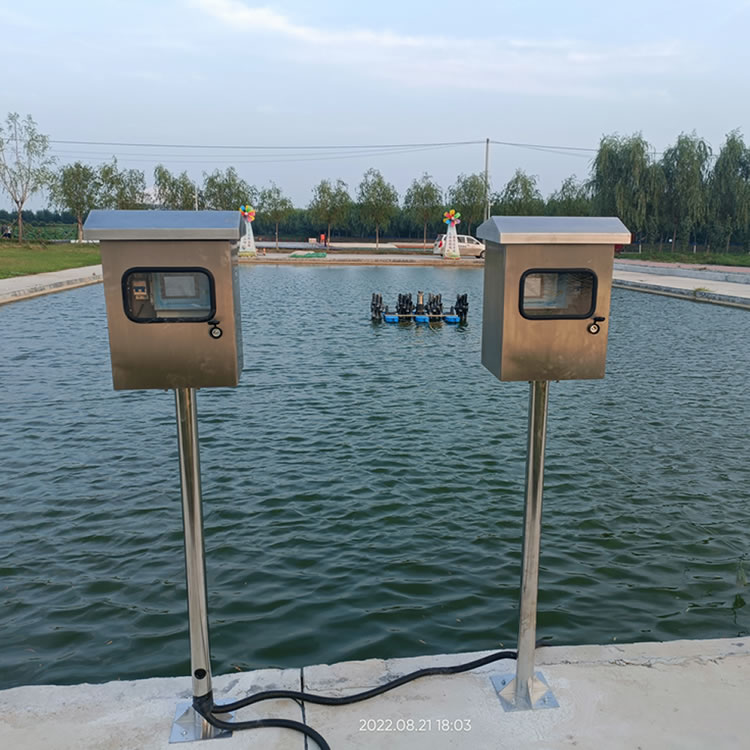

Aquaculture/Fishery
-
Agriculture
-
Industry
