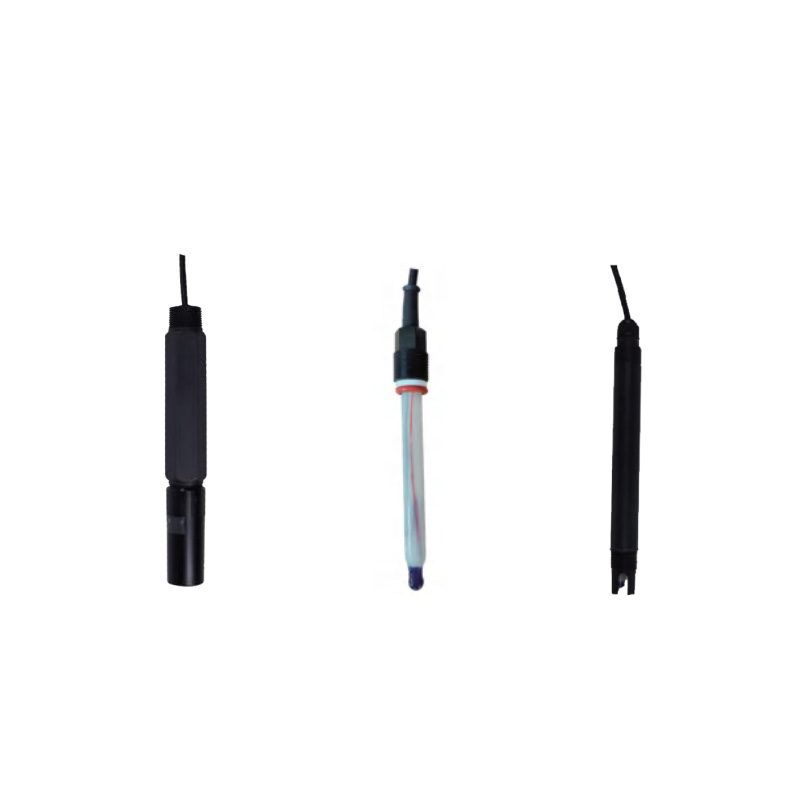

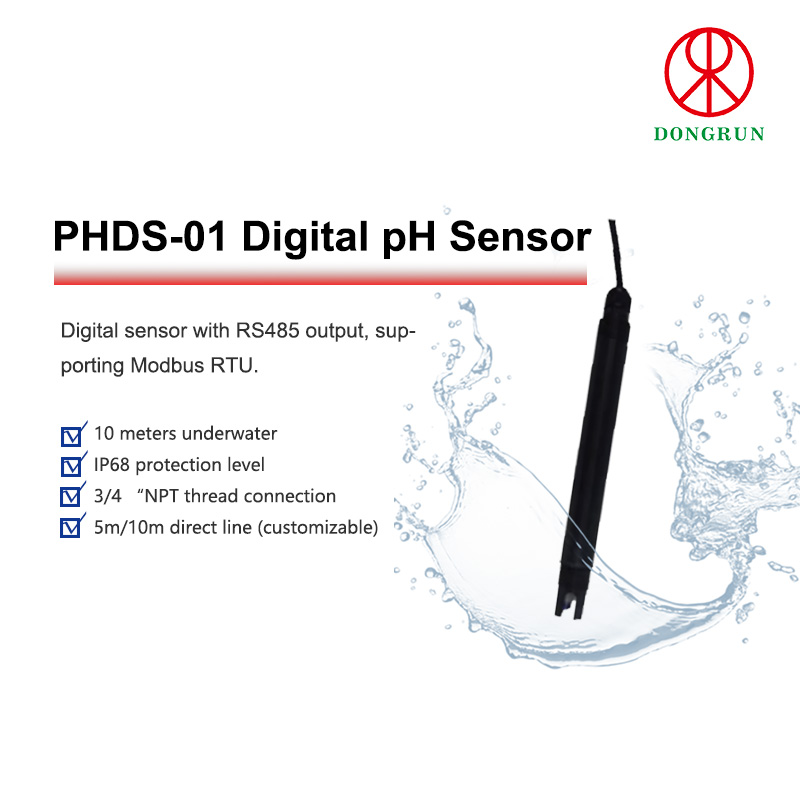

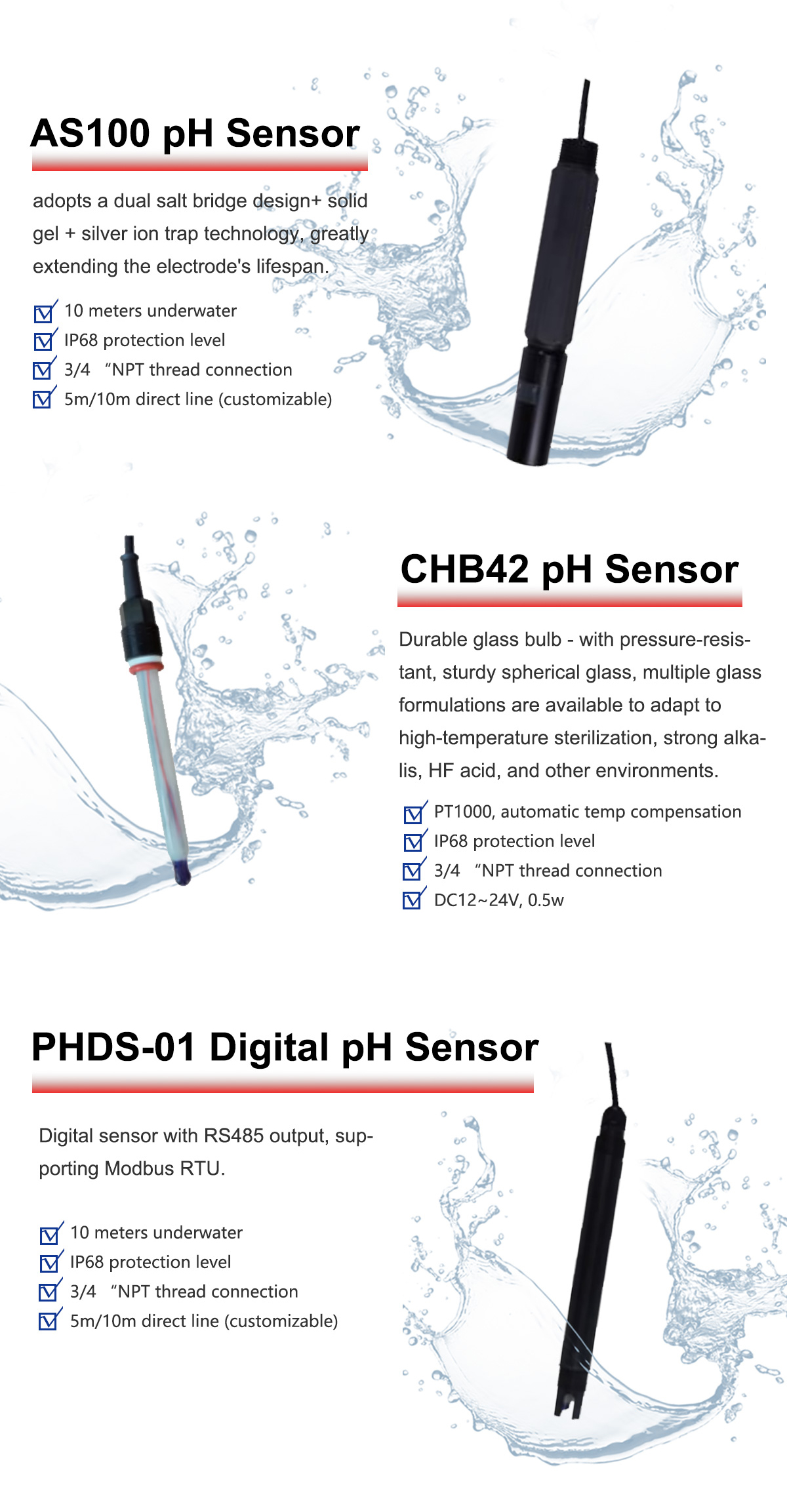

Model Code: PHDS-01 Digital pH/ORP Sensor
Application: Surface water, river and lake water, black and odorous water bodies, freshwater, mariculture/aquaculture
Measurement Range:
-
pH: 0.5 – 13 pH
-
ORP: -1999 – +1999 mV
Operating Conditions:
-
Temperature: 0 – 50 °C
-
Pressure: 10m underwater; IP68 protection rating
Temperature Compensation: Built-in Pt1000; automatic temperature compensation
Electrode Dimensions: 250mm length; 29mm maximum diameter
Wetted Parts Materials: PON (housing), Titanium, Glass
Installation: Upper thread M29×1.5

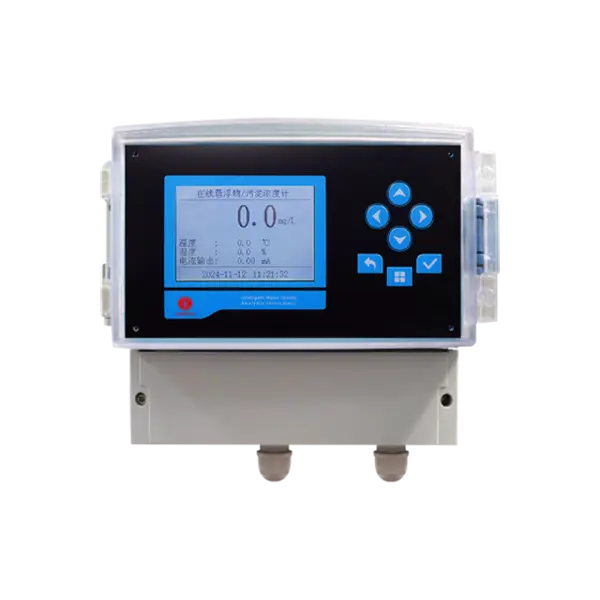

Transmitter Style: Digital Display PM-200 (×1 unit)
Cable: Integrated waterproof cable, 10 meters
