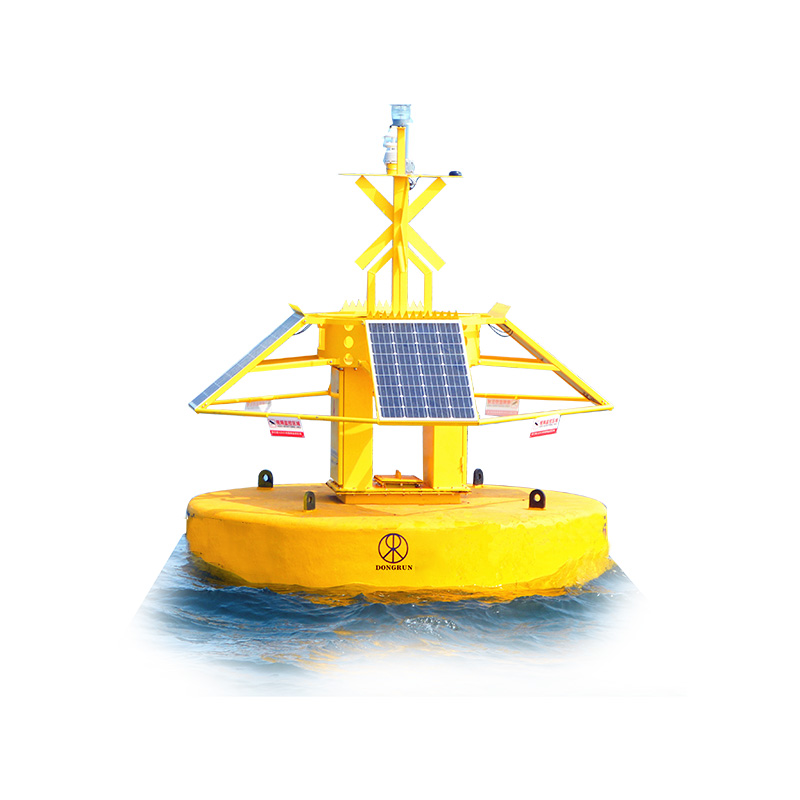

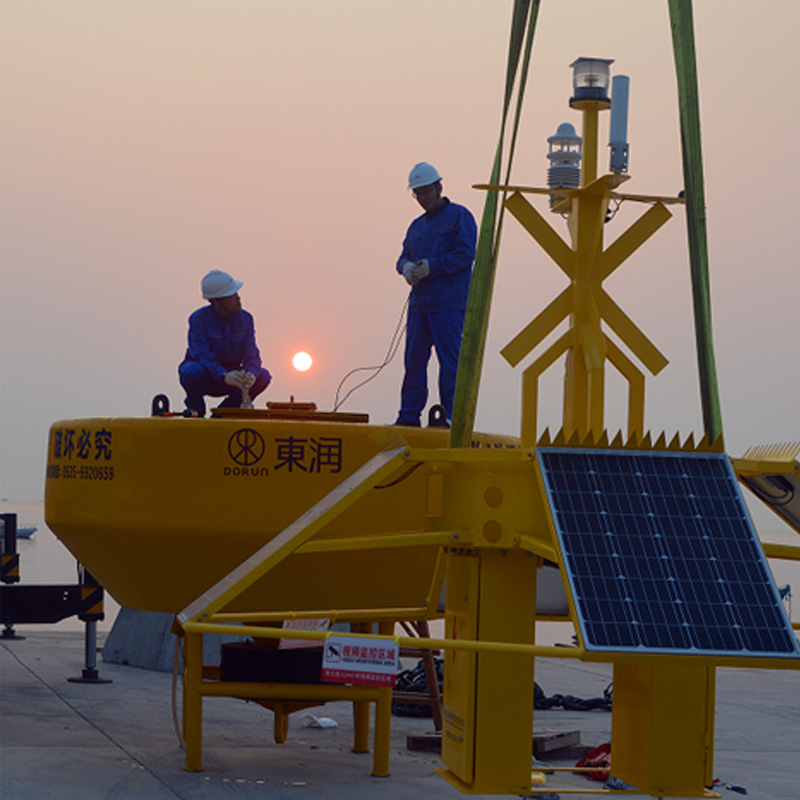

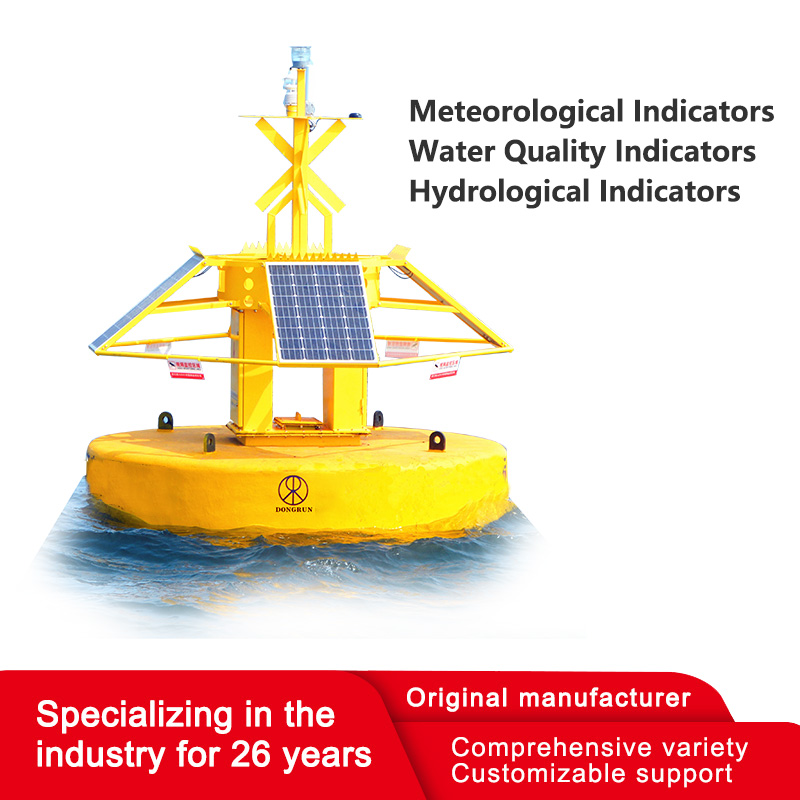

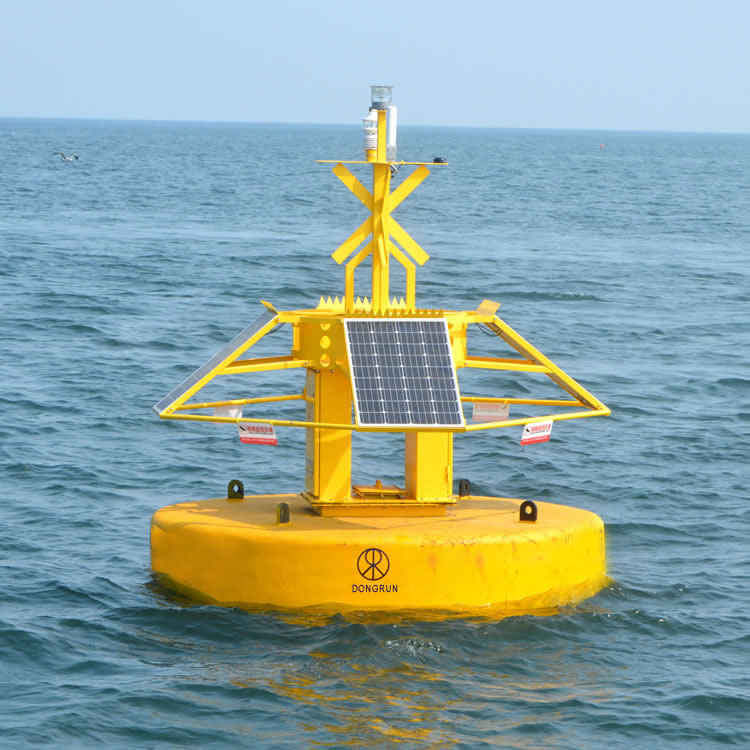

Buoy type water quality online monitoring system
1. Product Overview

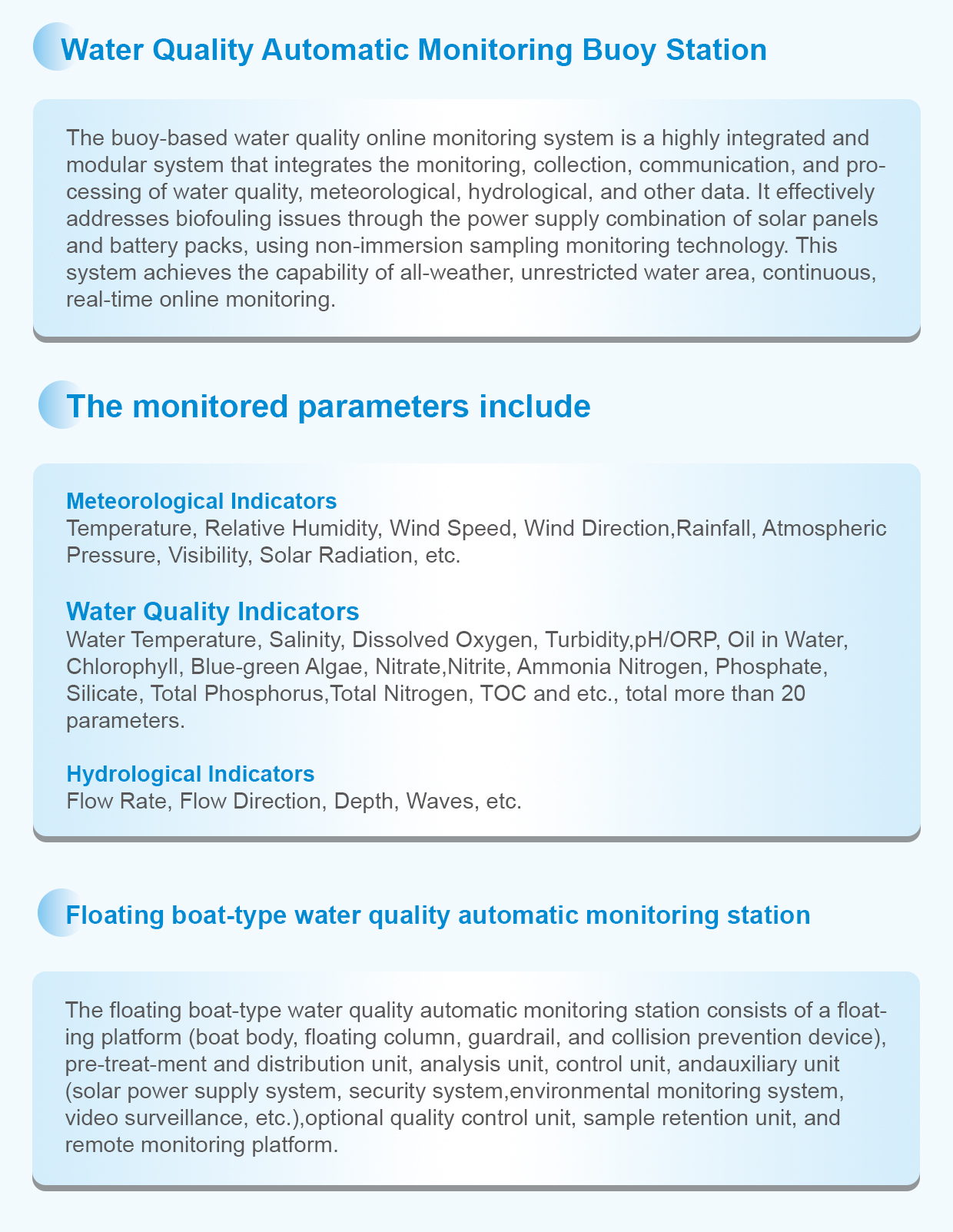

The Buoy-based Online Water Quality Monitoring System is a highly integrated and modular system that combines the monitoring, collection, communication, and processing of data such as water quality, meteorology, and hydrology. It is powered by a combination of solar panels and batteries. It employs non-immersive sampling and monitoring technology to address biofouling issues. The system is capable of continuous, real-time online monitoring in all climatic conditions and across various water bodies without restrictions.
2. Typical Applications
-
Early warning for water sources
-
Water quality monitoring in rivers, lakes, and reservoir areas
-
Tracking and monitoring of water quality in aquaculture zones
-
Tracking, early warning, and investigation of water quality at river estuaries
-
Monitoring, analysis, early warning, and assessment of marine environments
3. Product Features
-
Low-power consumption design ensures stable and reliable system operation.
-
Modular design facilitates future optimization and adjustment by customers.
-
Flexible deployment in water bodies; positioning can be adjusted later based on actual needs.
-
Specially designed instrument compartment door protects against external environmental impact, extending equipment lifespan.
-
Anti-biofouling sampling technology ensures good fouling resistance, long operation cycles, and minimal maintenance.
-
Buoy body is constructed from materials with excellent corrosion resistance, impact resistance, anti-sinking properties, and low water absorption, offering long service life and low maintenance.
-
Features strong anti-collision performance and comprehensive safety protection functions.
-
Contains multiple instrument wells, capable of carrying various environmental sensors and other probes, offering excellent expandability.
-
Combination of high-capacity solar panels and safe batteries provides sufficient power supply, enabling continuous operation for up to 7 days even during overcast/rainy weather.

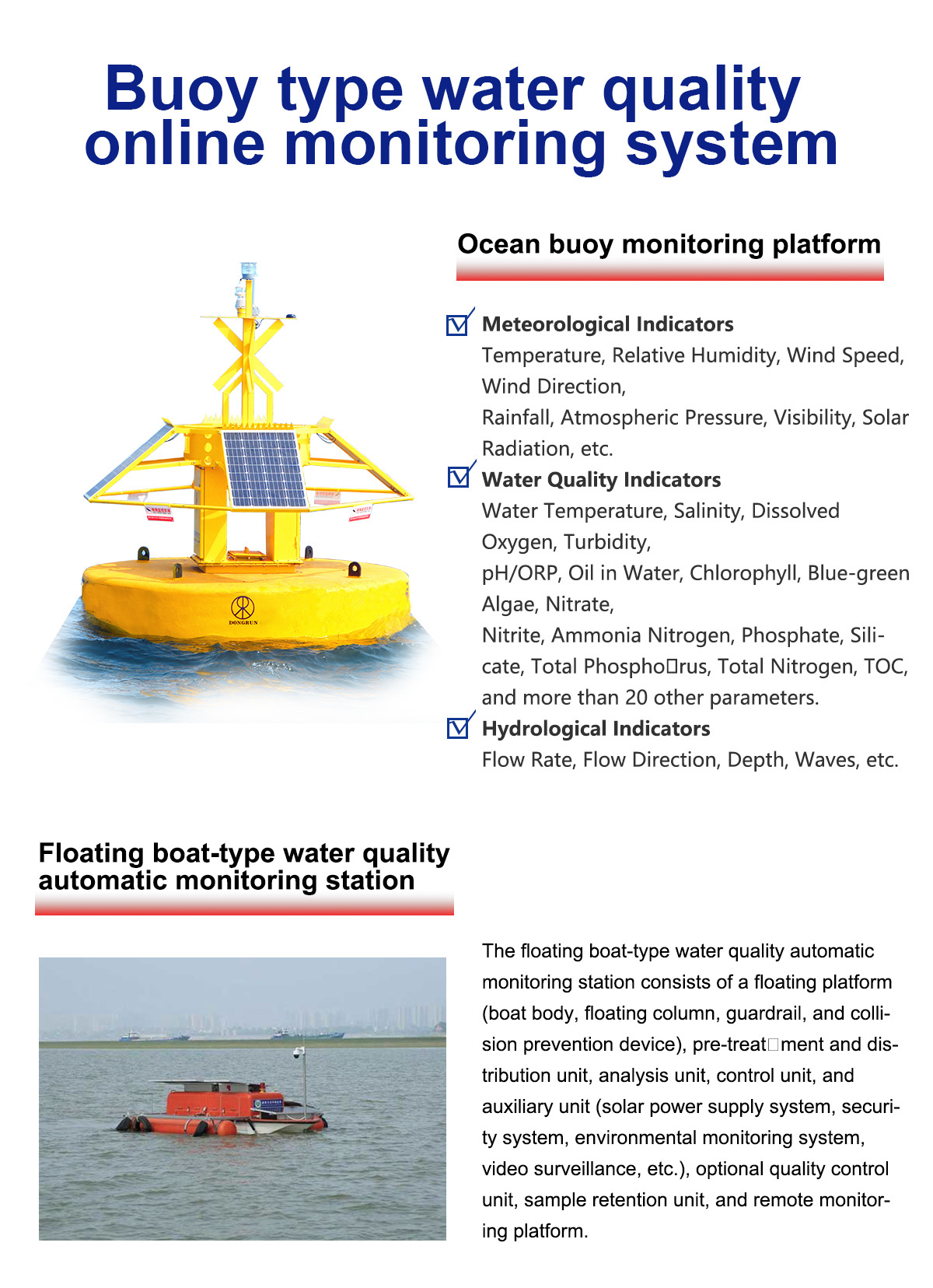

4. Technical Specifications
-
Meteorological Parameters: Temperature, Relative Humidity, Wind Speed, Wind Direction, Rainfall, Atmospheric Pressure, Visibility, Solar Radiation, etc.
-
Water Quality Parameters: Water Temperature, Salinity, Dissolved Oxygen, Turbidity, pH/ORP, Oil in Water, Chlorophyll, Blue-Green Algae, Nitrate, Nitrite, Ammonia, Phosphate, Silicate, Total Phosphorus, Total Nitrogen, TOC, and over 20 other parameters.
-
Hydrological Parameters: Flow Velocity, Flow Direction, Depth, Waves, etc.
-
Buoy Size: 1000~3000 mm
-
Signal Transmission: Wireless transmission via RTU using mobile communication, Beidou Satellite, or microwave.
