Advantages
-
No sensor polarization effect
-
Accurate measurement and stable performance
-
Built-in concentration curves for common acids, bases, and salts. Users can also establish their own required concentration curves.
-
Easy operation and maintenance
Product Description

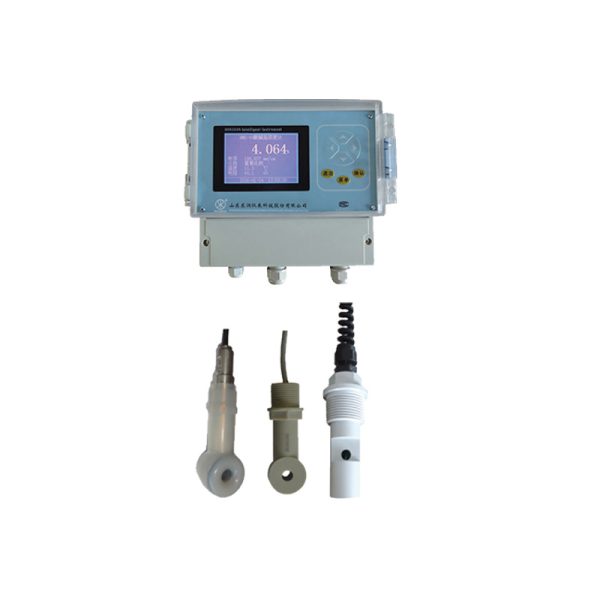

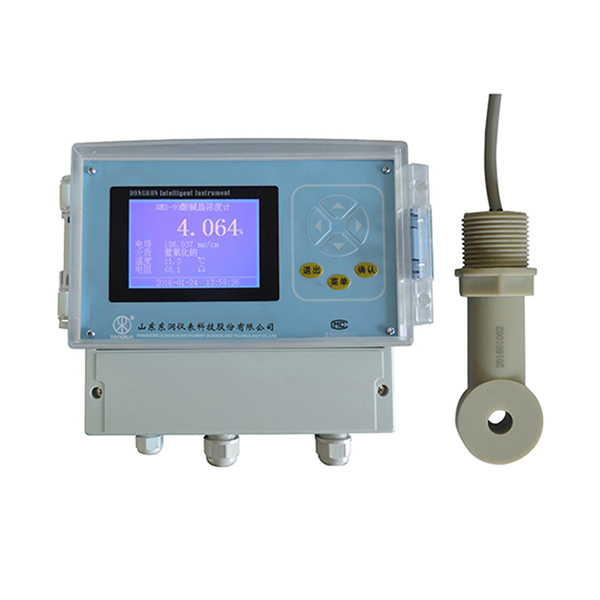

The NMD-99 Intelligent Acid, Base & Salt Concentration Analyzer is a new type of continuous online monitoring instrument designed based on the principle of electromagnetic induction. As its sensor operates without contact with the medium, it is free from polarization effects. Compared to ordinary sensors, it offers unparalleled advantages in the continuous online measurement of concentration and conductivity for acids, bases, salts, corrosive media, and more.
Sensor Specifications
| NMD-M2 | NMD-M5 | NMD-M4 | |
|---|---|---|---|
| Material in Contact with Medium | PP | Chlorinated Vinyl | Polyvinylidene Fluoride |
| Medium Temperature | 70 °C | 80 °C | 130 °C |
| Medium Pressure | 0.6 MPa | 0.6 MPa | 1.6 MPa |
| Maximum Flow Velocity | 3 m/s | 3 m/s | 3 m/s |
| Measurement Range | 0～20 mS/cm 0～200 mS/cm 0～1000 mS/cm |
0～200 mS/cm | 0～20 mS/cm 0～200 mS/cm 0～1000 mS/cm |
Transmitter Specifications
-
Measurement Range: Concentration (Weight percentage or customized per your requirements).
-
Pre-loaded Media Concentration Ranges:
-
Medium: Hydrochloric Acid, Concentration (%): 0-10
-
Medium: Sulfuric Acid, Concentration (%): 0-20
-
Medium: Nitric Acid, Concentration (%): 0-20
-
Medium: Sodium Hydroxide, Concentration (%): 0-16
-
Medium: Sodium Chloride, Concentration (%): 0-20
-
Technical Parameters
-
Conductivity: 0～20 mS/cm, 0～200 mS/cm, 0～1000 mS/cm
-
Accuracy: 2% F.S.
-
Repeatability: 0.5% F.S.
-
Temperature: -5～100 °C (PT1000)
-
Analog Output: 4~20mA
-
Digital Output: MODBUS/RS485
-
Relay Output: Optional dual alarm relays (250VAC, 10A)
-
Power Supply: 220V AC, 50Hz; 24V DC ±10%
-
Enclosure Protection: IP65
-
Installation: Wall-mounted
-
Dimensions: 234 mm (L) × 185 mm (W) × 118 mm (H)
